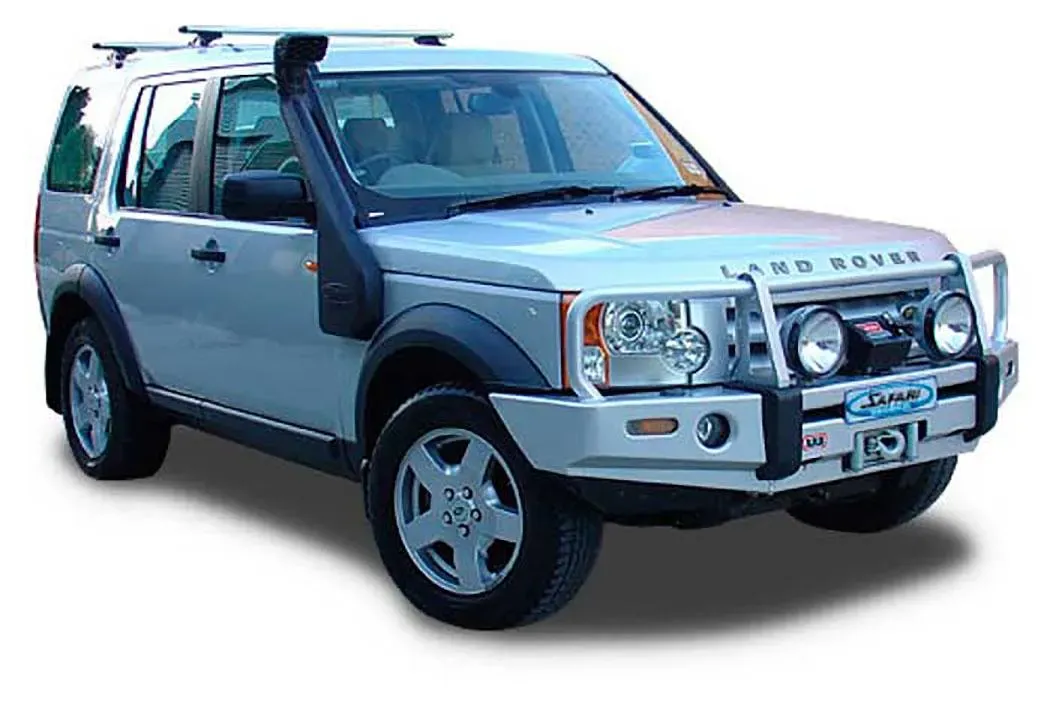

4X4 Safari Snorkel for the Land Rover Discovery 3 2006 – 09/2009 2.7L Diesel
Safari Part Number: SS385HF
4X4 Safari Snorkel for the Land Rover Discovery 3
Get the best protection and performance for your engine with the 4X4 Safari Snorkel. It is custom-built for the Land Rover Discovery 3 (2006 – 09/2009 2.7L Diesel). This unit has been manufactured by Safari Automotive, and it is built to deliver the highest volumes of the cleanest, coolest air into your vehicle’s standard air cleaner assembly or filter—thereby guaranteeing that your engine survives in every possible condition including extreme off-roading and heavy rainfall seasons.
The SS385HF Safari Snorkel also raises the air intake to prevent the engine from taking in harmful dust, water, or debris found in off-road adventures. The airflow is not the only thing that is unique, the specialized air ram head is also a very efficient water separator which keeps your system safe from over water in tropical storms.
This snorkel is also constructed from UV stable cross-linked polyethylene which guarantees it can withstand Australia’s harshest environments. It also ensures high durability and performance at every performance.
- Proudly Australian-Made: Safari Automotive products have passed Australian standards for quality.
- Raised Air Intake: Increases water, dust, and debris deflection from the engine during off-road driving for maximum efficiency.
- Enhanced Airflow: Customized for the 2.7L diesel engine’s airflow needs, provides the engine with cooler and cleaner air to enhance performance.
- Water Separation System: The Safari air ram head passively keeps water away from the intake stream, ensuring the engine remains dry and runs safely in wet conditions.
- Built to Last: Constructed from a UV stabilized cross-linked polyethylene, these parts will last a long time and resist cracking or fading.
- Easy Installation: Comes with a detailed installation guide, a comprehensive fitting guide, and an exact template for precise fitting and simple installation.

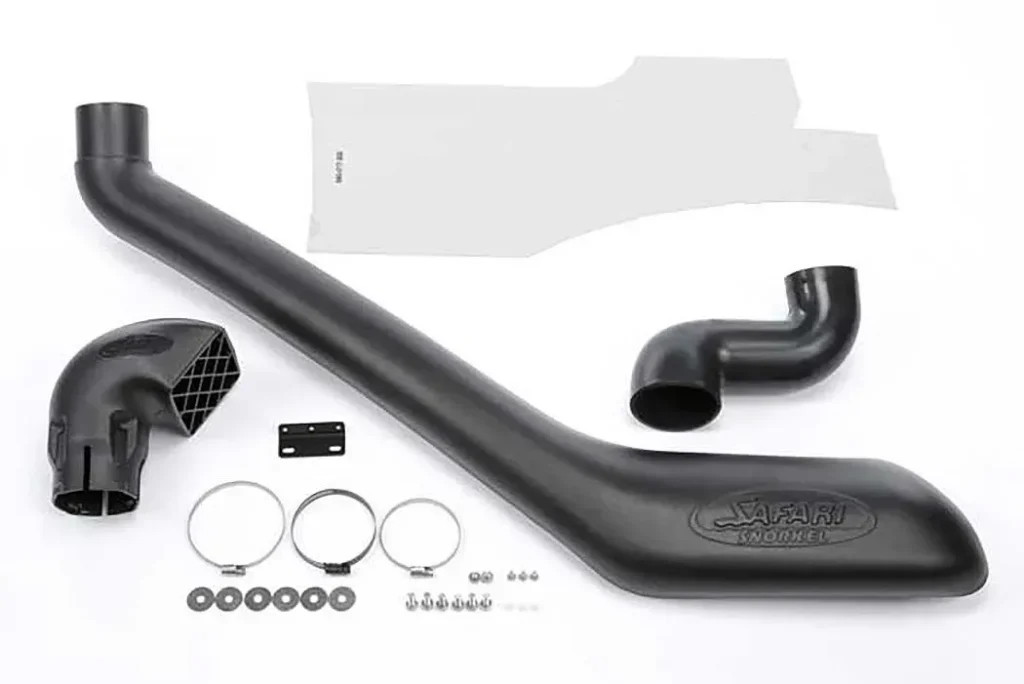

The parts included in the Safari Snorkel Kit for Land Rover Discovery 3 (SS385HF) are:
- Snorkel Body (Cross-linked polyethylene)
- 3½” Air Ram Assembly
- Upper Mounting Bracket
- Hex Bolt – 6mm x 1.0 x 14mm (SEMS)
- Pop Rivet – 4.8mm x 14mm
- Stainless Steel Stud – 8mm x 1.25 x 25mm
- Washer – 8mm x 30mm
- Nyloc Nut – 8mm x 1.25mm
- Stainless Steel Stud – 6mm x 1.0 x 25mm
- Washer – 6mm x 20mm
- Nyloc Nut – 6mm x 1.0mm
- Connecting Duct
- Cuffed Hose – 82mm ID x 750mm
- Hose Clamps – 80/100mm & Size 56 (Black)
- Foam Seal
- Installation Templates:
- Guard Panel
- Inner Guard
- Mounting Bracket
- A-Pillar Trim
Safari Snorkel Installation Guide
