Nissan Y61 Patrol Wagon GVM Upgrade
Fit a bull bar, long range tank, roof rack and recovery gear to a GU Patrol and you can burn through 300 to 400kg of factory payload before a single person gets in the cab. Add a full touring load on top of that and you are almost certainly overweight.
At Opposite Lock Cardiff, we upgrade the Nissan Y61 GU Patrol GVM from the factory 3000KG up to a certified 3550KG. The upgrade is ADR compliant, uses a Tough Dog GVM kit and is carried out by a certified Second Stage Manufacturer right here in Newcastle.
What Does a GU Patrol GVM Upgrade Actually Do?
GVM stands for Gross Vehicle Mass. It is the maximum legal weight your vehicle is allowed to weigh when fully loaded, covering the vehicle itself plus fuel, passengers, accessories and cargo.
The factory GVM on the Nissan Y61 Patrol Wagon is 3000KG. Our certified upgrade increases that figure to 3550KG. That is an extra 550KG of legal payload you can carry without putting yourself at risk of a fine, a defect notice, or a voided insurance claim.
The GVM upgrade does not just raise a number on paper. It includes a full Tough Dog suspension kit engineered to handle the increased load, plus a series of mandatory compliance tests to make sure your GU Patrol brakes, handles, and performs at or above its original factory standard under the new payload rating.
Why GU Patrol Owners in Newcastle Get This Done
The GU Patrol is one of the most popular touring 4WDs in the Hunter Region. It is a tough, reliable platform. But its factory payload disappears fast when you start building it up for the bush.
A stock GU Patrol sitting at 3000KG GVM with a kerb weight around 2400KG leaves you roughly 600KG of usable payload. That sounds like plenty until you start adding gear.
A decent bull bar, long range fuel tank, roof rack, dual battery system and recovery gear can add 250 to 400KG on their own. Throw in passengers, water, food, tools and camping gear and you are over the limit before you have even left the drive.
Driving overweight in NSW carries real consequences. RMS can weigh your vehicle at a checkpoint. An insurer can reject a claim if overloading is found to be a factor. And mechanically, asking your brakes and tyres to do a job they were not rated for is a risk no trip is worth taking.
A GU Patrol GVM upgrade from Opposite Lock Cardiff fixes all of that.

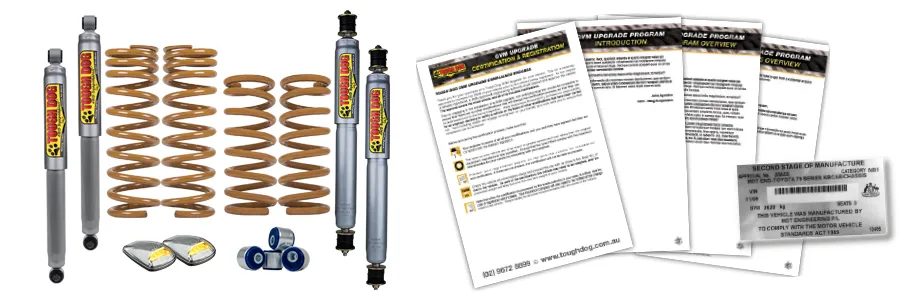

Tough Dog GVM Kit for the Nissan Y61 Patrol Wagon
We use the Tough Dog GVM kit for all Y61 Patrol Wagon upgrades. Tough Dog is one of Australia’s most trusted suspension and GVM brands, and their Y61 kit is engineered specifically for the GU Patrol platform.
The kit includes a full suspension upgrade matched to the new 3550KG rating. That means your ride quality, handling, and braking response are all matched to what the vehicle now needs to carry, not just what it left the factory rated for.
If you are planning a full touring build and want to see what Tough Dog suspension looks like across our full suspension lift kit range, check out our Tough Dog suspension kits page.
What the GU Patrol GVM Upgrade Process Includes
Every GU Patrol GVM upgrade we carry out at our Cardiff 4×4 workshop covers the following:
The Tough Dog GVM suspension kit is fitted to your Y61 first. From there, the vehicle goes through a Finite Element Analysis test to verify axle load capacity at the new GVM rating. Brake testing is then carried out both laden and unladen to confirm compliance with ADR35/00. If your GU Patrol has an ESC system fitted, that is validated against the original factory response to make sure it performs equal to or better than standard.
Once testing is complete, you receive full compliance documentation and an additional compliance plate fitted to the vehicle confirming the new 3550KG GVM rating.
This is not a simple suspension swap. It is a certified engineering process. That is what separates a properly done GVM upgrade from a risk that follows you down every highway in NSW.
Federal and State GVM Approval in NSW - Which One Applies to You?
There are two approval pathways depending on your vehicle’s registration status.
If your GU Patrol has never been registered, Federal approval applies. The upgrade is certified at the national level and an additional compliance plate is affixed directly to the vehicle.
If your GU Patrol is already registered in NSW, which covers almost every GU owner we see, the Federal compliance data is combined with an inspection from an authorised NSW state engineer. That combined process certifies the vehicle under State approval.
Our team at Opposite Lock Cardiff handles the documentation and walks you through whichever pathway applies. You do not need to figure that out on your own.
Planning a Full GU Patrol Build? Do It All in One Visit
Most GU Patrol owners coming in for a GVM upgrade are also mid-build or planning one. That works well for us because we can do the full job in a single booking.
Common combinations we put together at our Cardiff workshop include the GVM upgrade paired with a bull bar for the GU Patrol, a roof rack installation, or a dual battery system for camp power. Some owners also come in for a 4WD wheel alignment after the suspension is fitted, which we recommend in all cases.
If you want to see how other GU Patrol builds have come together, head over to our GVM upgrades page to see the full vehicle range we work on.
We Serve GU Patrol Owners Across the Hunter Region
Opposite Lock Cardiff is based on Munibung Road in Cardiff NSW. We are open Monday to Friday from 8am to 5pm and Saturday from 9am to 1pm.
GU Patrol owners come to us from across the Hunter Region for GVM upgrades, including Newcastle, Lake Macquarie, Maitland, Cessnock, Singleton, Rutherford and Port Stephens. Some customers travel up from the Central Coast for specialist work when they want it done properly the first time.
We have been working on 4WD builds in Newcastle for over 10 years. The GU Patrol is a vehicle we know well.
Common Questions About GU Patrol GVM Upgrade
What does the GU Patrol GVM upgrade to?
The Nissan Y61 GU Patrol Wagon upgrades from its factory GVM of 3000KG to a certified 3550KG. That is an increase of 550KG in legal payload capacity.
Is the GVM upgrade legal in NSW?
Yes. The upgrade is certified through either Federal or State approval pathways depending on your vehicle’s registration status. All work is carried out by a certified Second Stage Manufacturer and tested to Australian Design Rules.
Does the GVM upgrade include new suspension?
Yes. The Tough Dog GVM kit includes a full suspension upgrade engineered to match the new 3550KG payload rating. Your GU Patrol handles, brakes, and rides better than it would on standard suspension at that load.
Will my insurance be affected?
Running an overloaded vehicle without a GVM upgrade puts your insurance at far greater risk than having one. A certified upgrade documents that your vehicle is legally rated to carry what you are carrying. Check the specific terms with your insurer, but a certified upgrade is the safer position.
How long does the job take?
Most GU Patrol GVM upgrades are completed within a day at our Cardiff workshop. We confirm the booking timeline when you call.
Can I get other accessories fitted at the same time?
Yes. We regularly combine the GVM upgrade with bull bar fitting, roof rack installation, dual battery systems, and wheel alignment checks. Tell us what you are planning and we will book it all in together.
What is the difference between a GVM upgrade and a GCM upgrade?
GVM is the maximum weight of your vehicle fully loaded. GCM is the combined mass of the vehicle plus a trailer. If you are towing as well as carrying a full load, you may need to consider both. Talk to our team and we can advise what applies to your setup.
Do you service areas outside Cardiff?
Our 4×4 workshop is in Cardiff NSW and we serve the wider Hunter Region including Newcastle, Lake Macquarie, Maitland, Cessnock and Singleton. Customers also come to us from the Central Coast and Hunter Valley.
Book Your GU Patrol GVM Upgrade at Opposite Lock Cardiff
If your GU Patrol is built up or you are planning to build it up, sort the GVM upgrade before you hit the road. It is the right call legally, mechanically and for your insurance position.
Call us on 02 4058 1911 or fill in the quote form and we will get back to you with a price for your specific vehicle and build.
Open Monday to Friday 8am to 5pm, Saturday 9am to 1pm.
- 3550KG GVM Kit for Nissan Y61 Patrol Wagon
