Tanami Stainless Steel Snorkels

1. Water: A factory intake sits low in the engine bay. Drive into water deeper than that intake and the engine draws water instead of air. Water does not compress, so the piston hits it and bends a con rod or cracks the block. Hydraulic lock is an engine rebuild, not a roadside fix. A sealed snorkel raises the intake above the bonnet line so the engine keeps breathing air through a crossing.
2. Dust: On a dirt road the vehicle generates its own dust cloud at wheel height. A low intake pulls that straight into the filter. Roof height air carries a fraction of the particulate, so the filter lasts longer and less abrasive material reaches the intake tract.

Choosing Your Tanami Stainless Steel Snorkel

Mondexpl builds the same snorkel in several finishes and configurations, so the part number depends on your vehicle and how you use it.

Tanami Snorkel Finish Options

Standard or Low Cut Entry

Standard entry puts the air ram at full height for maximum water clearance. Low cut entry, carrying an LC suffix, drops the ram lower on the A-pillar. It clears a garage door, a carport or a height-restricted worksite gate, at the cost of a little intake height. Choose it if you park undercover daily and drive more dust than water.

Vehicle-Specific Snorkel Variants

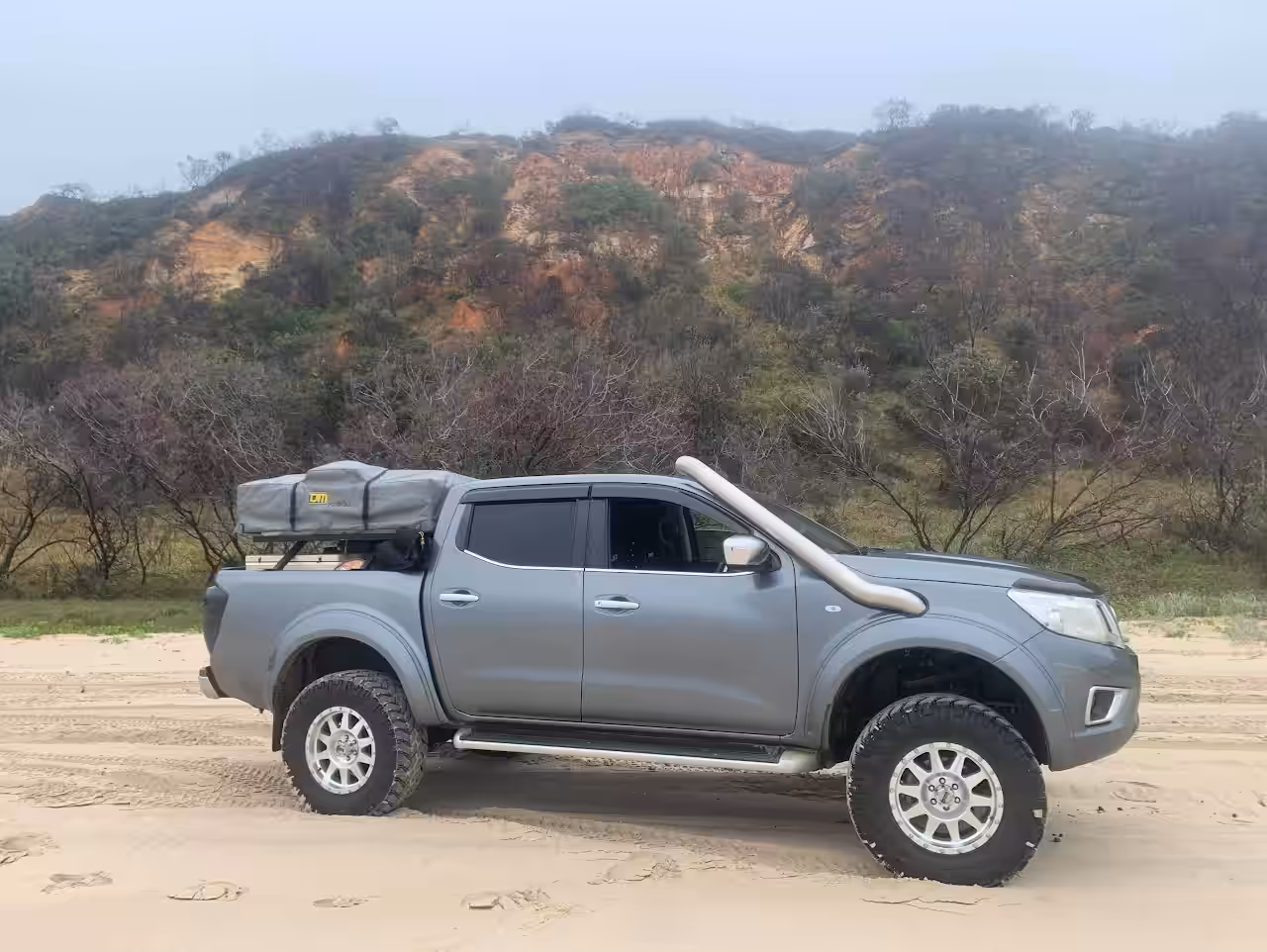

On some platforms we relocate the washer bottle to clear the snorkel pipe, and Mondexpl supplies the relocated bottle with those kits. Wide body platforms including the NP300 Navara take a different guard cut and pipe geometry. Mondexpl also builds LHS dummy snorkels on selected vehicles for owners running matched pairs. Ordering the wrong variant for a specific platform is the mistake we see most. Call us on (02) 4058 1911 and we will confirm which one your 4×4 takes before anything goes on order.

316 Stainless Steel Snorkel vs Plastic

Grade 316 is marine stainless. Boat builders specify it because it survives salt air and sustained water contact without pitting, which is the same reason it holds up on a 4WD running Stockton Beach or the Port Stephens tracks. Polyethylene snorkels do the job when new. Give them a few Newcastle summers and the sun-facing side chalks and fades, and the air ram picks up chips from branches on a tight track. Stainless does neither. There is a sound difference too. Air through a metal tube produces a deeper induction note under load than air through plastic.

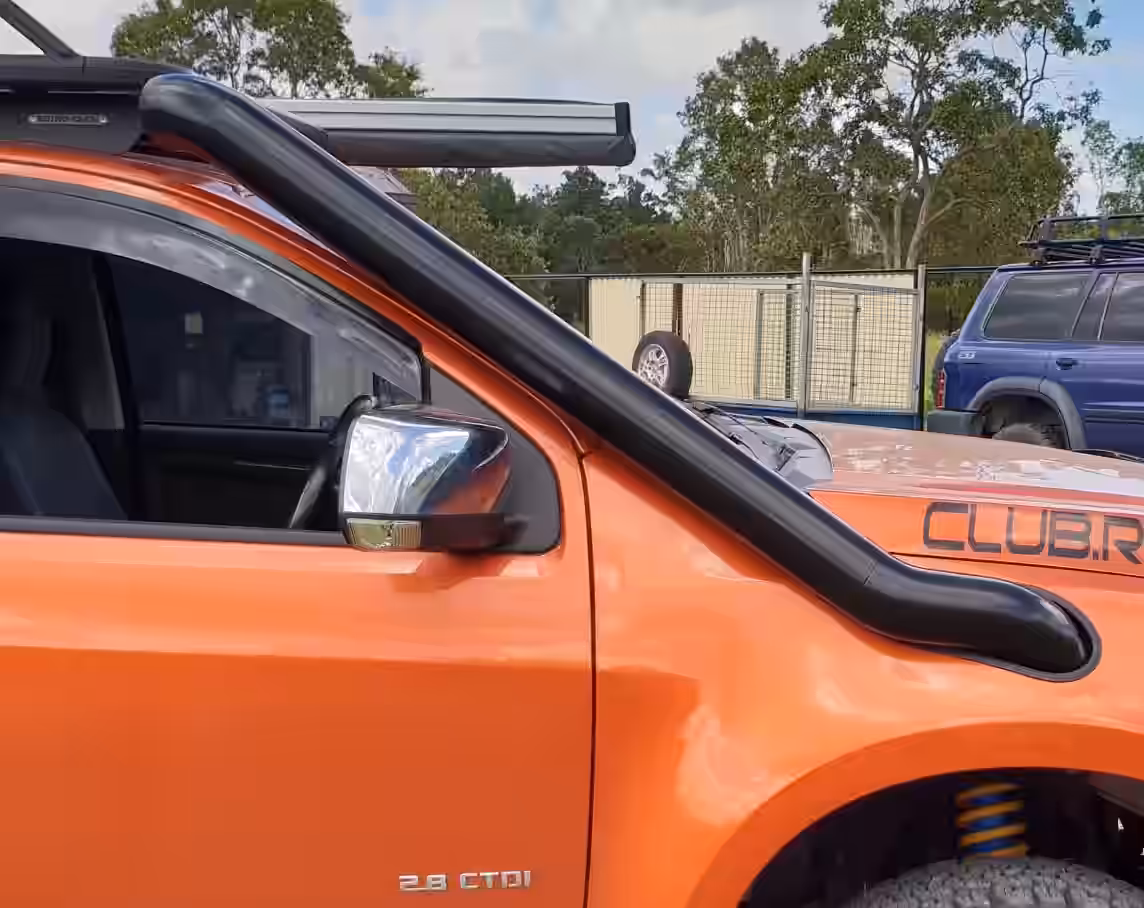

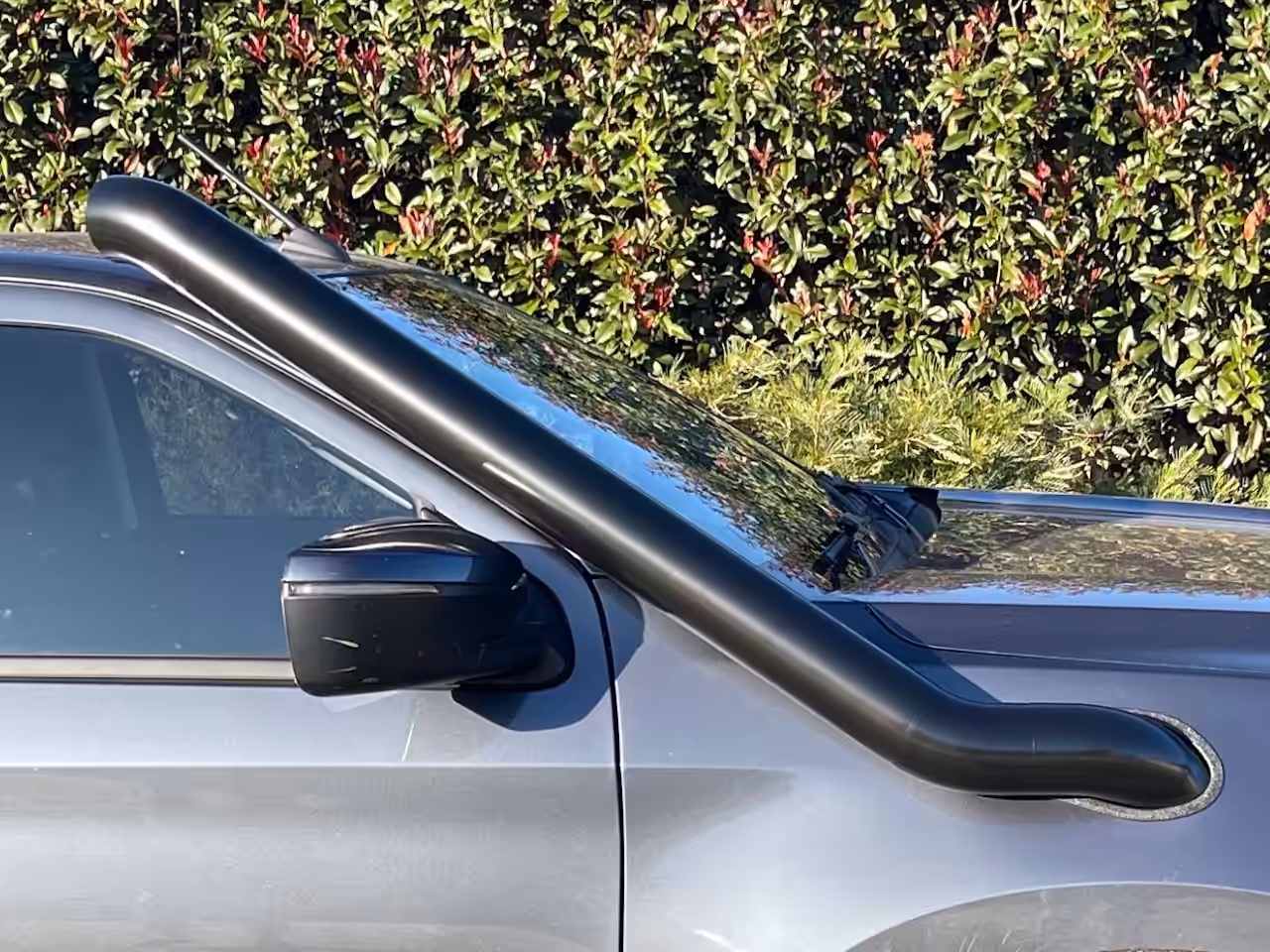

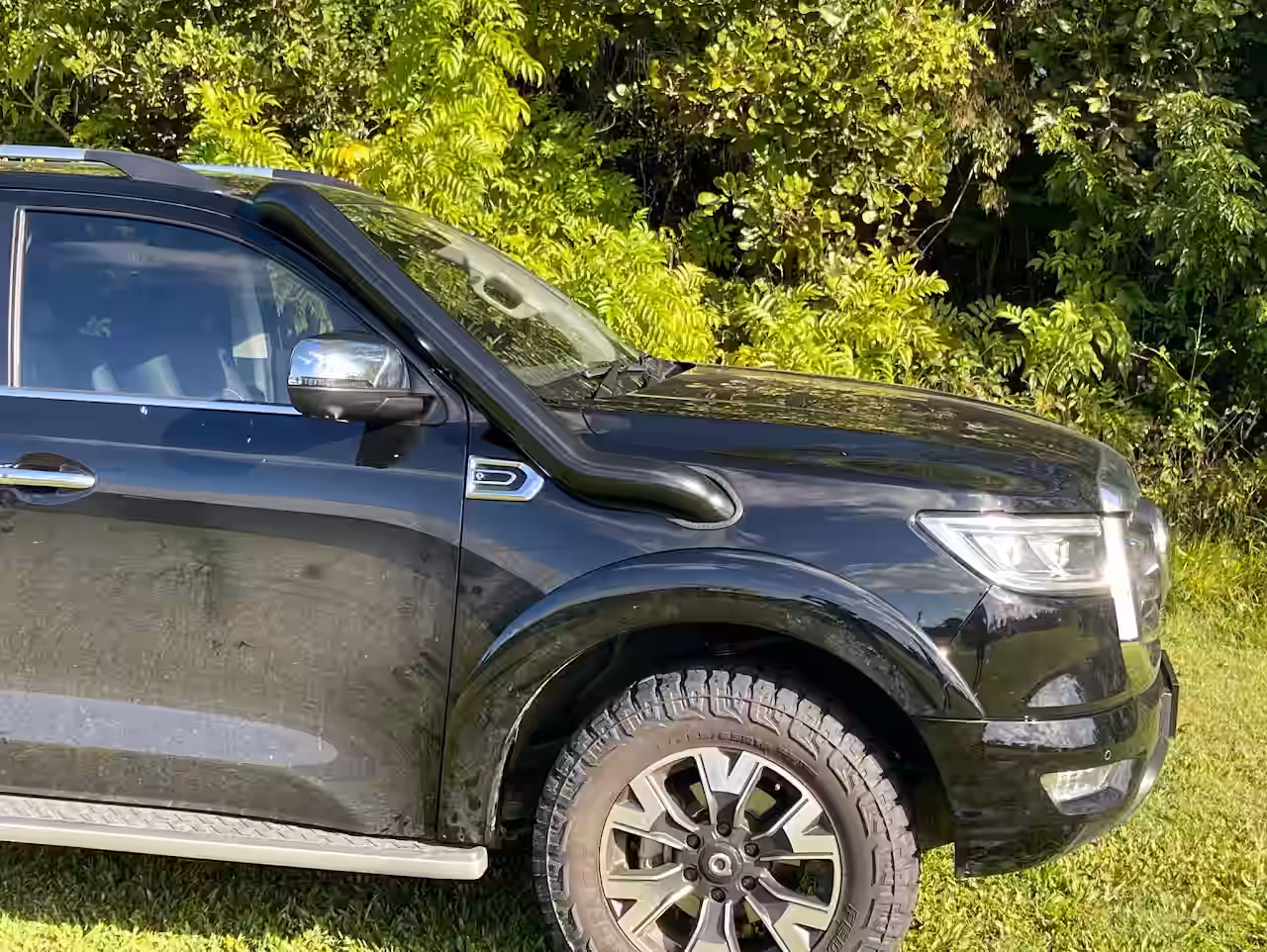

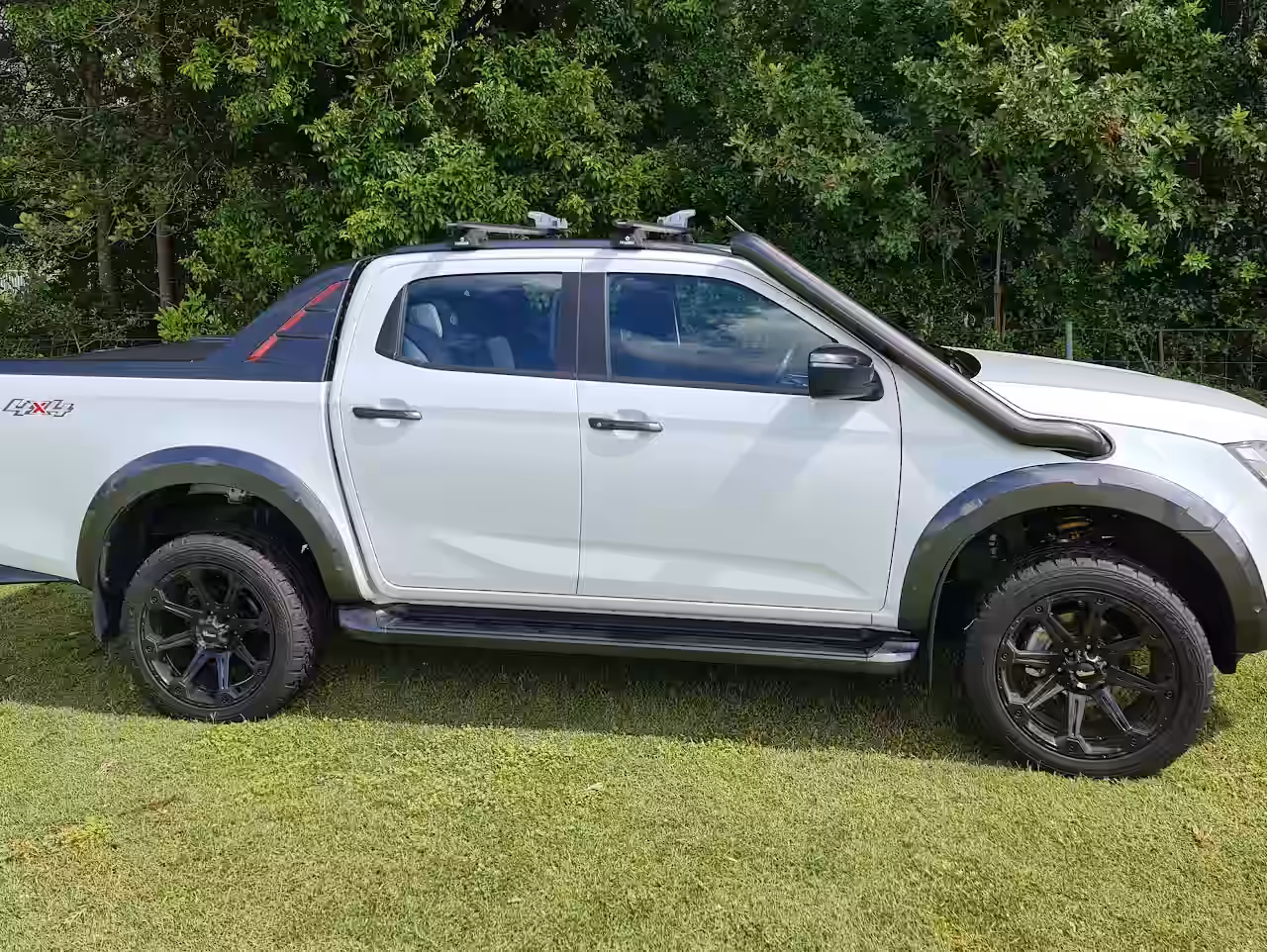

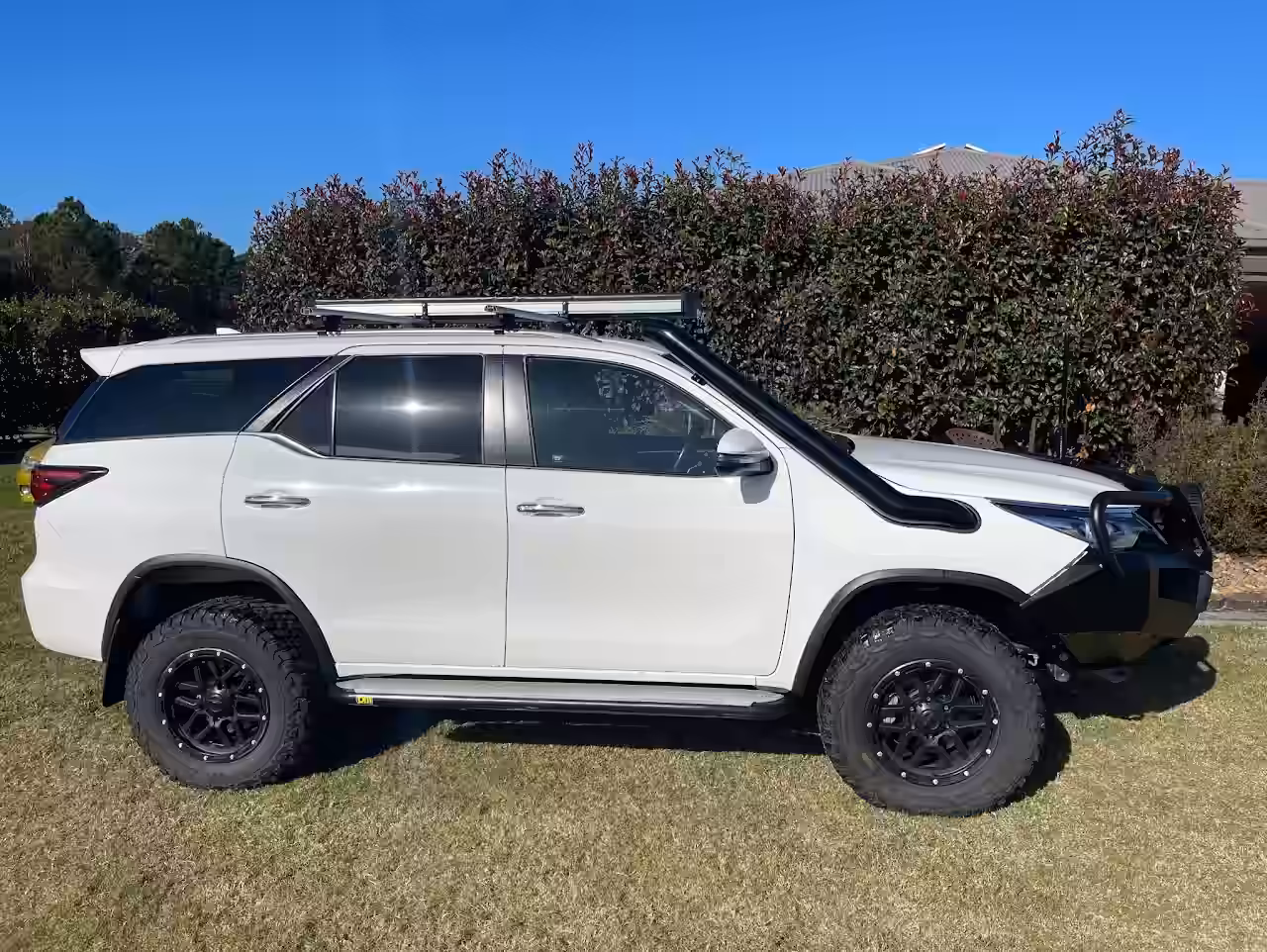

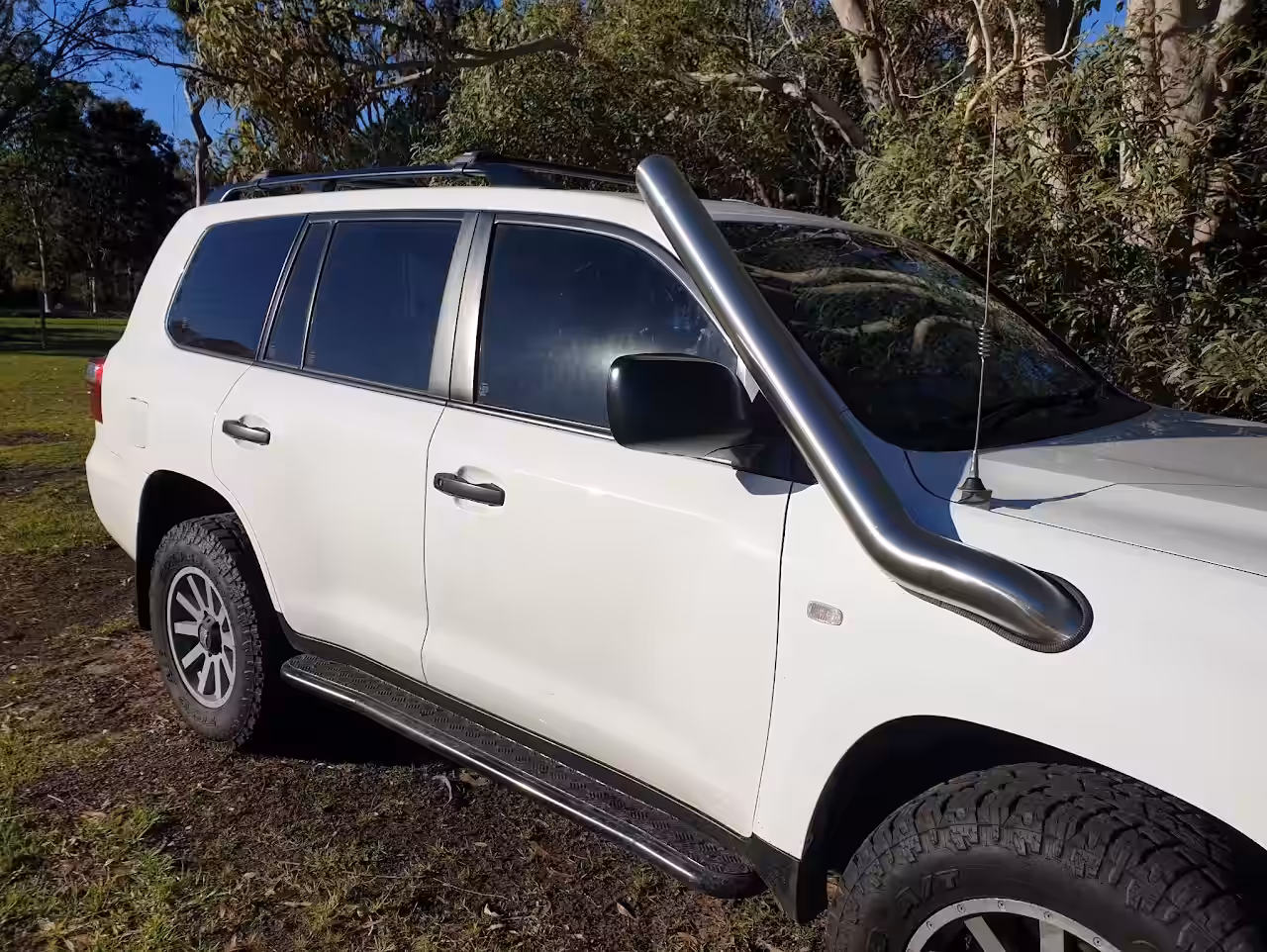

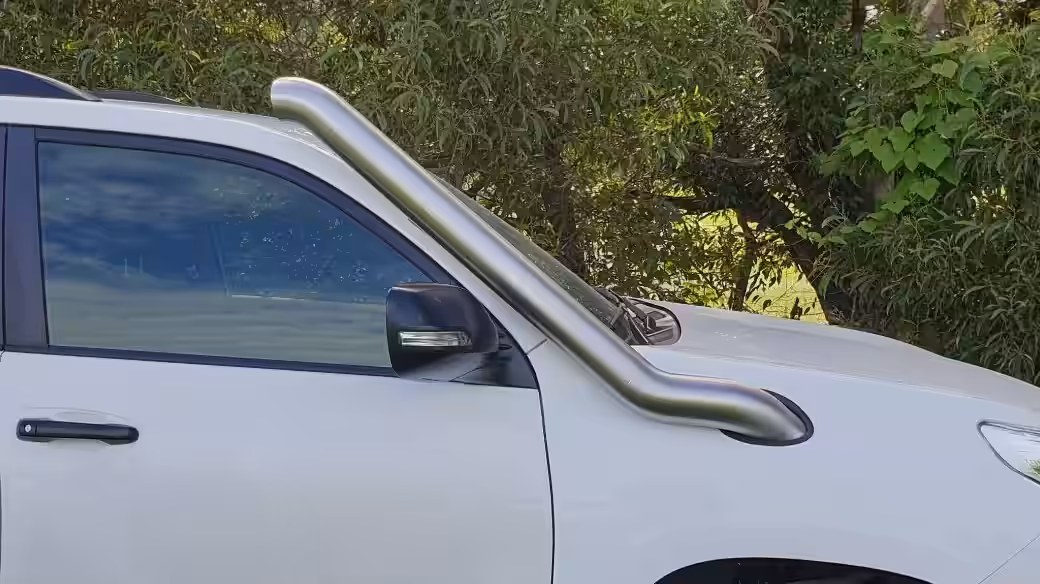

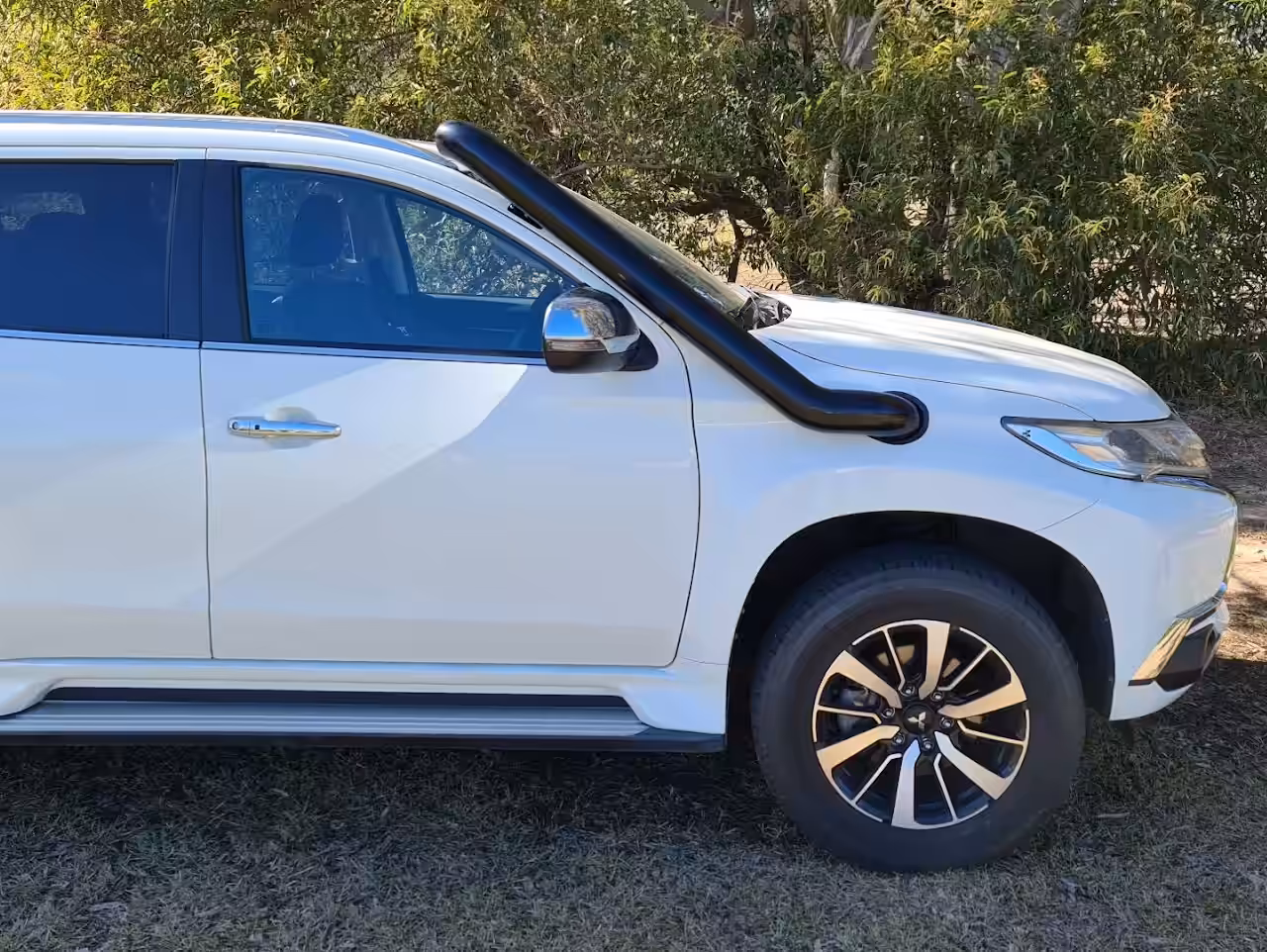

Vehicles That Take a Tanami Stainless Steel Snorkel

Call us on (02) 4058 1911 and we will confirm what Mondexpl currently builds for your specific vehicle and year.

Stainless Steel Snorkel Fitting in Newcastle

Every kit arrives complete: snorkel body, fitting instructions, a cutting template Mondexpl cuts for your specific vehicle and the hardware to connect a standard airbox. Fitting means cutting the guard. That is the part owners hesitate over and the reason most bring it to us rather than doing it at home. We work to the supplied template, mount the body, then seal and pressure check every join back to the airbox before the vehicle goes out. Two to three hours depending on the platform and variant. As a licensed and authorised Mondexpl dealer in Newcastle we confirm fitment before the order, not after the box arrives. Ring us on (02) 4058 1911 to book and get a fixed quote covering the snorkel and the labour.

Buy Tanami Stainless Steel Snorkels in Newcastle

Call us on (02) 4058 1911 and we will confirm the right Tanami stainless steel snorkel for your 4×4 and quote a fixed price covering the snorkel and the fitting. Most of the snorkels we fit go on vehicles running Stockton Beach, the Watagans and the Barrington tracks, so we know what those conditions ask of a seal. Every snorkel we supply carries the full Mondexpl warranty and we handle any claim here rather than sending you to an online returns process.
