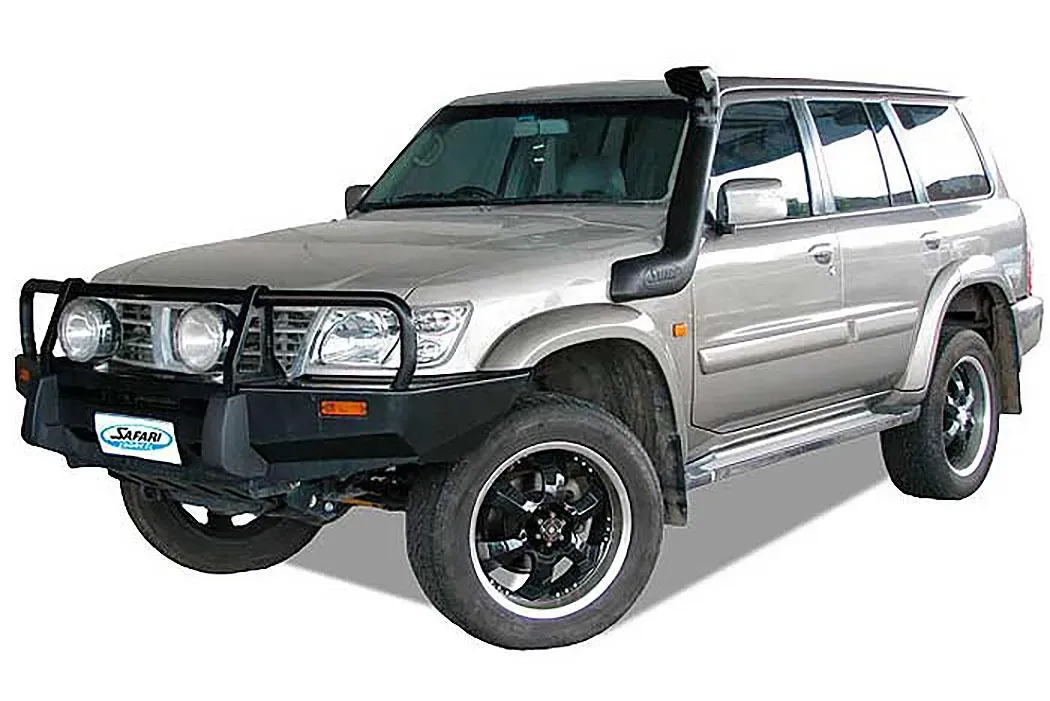

4X4 Safari Snorkel for the Nissan GU Patrol (Y61) Series 1 TD42-I6 4.2L Diesel

Safari Part Number: SS15HFD

GET A FREE QUOTE

Overview

Meeting the performance standards of iconic Nissan GU Patrol (Y61) Series 1 TD42-I6 4.2L Diesel, the Safari SS15HFD snorkel offers superior air intake while providing rugged off-road reliability. It is Australian designed and manufactured. This snorkel is built to significantly bolster the airflow to your engine, as well as shield it from water, dust, and debris during your 4×4 expeditions.

The snorkel’s elevation of the air intake position protects the engine from ingesting contaminants. It allows the engine to receive air while fording rivers, driving on dusty outback tracks, or enduring torrential tropical storms. The cooler and cleaner the air, the better the engine breathes.

The air ram head not only serves as an intake; it is also a powerful water separator. Built from heavy-duty, UV-stabilized, cross-linked polyethylene, the snorkel can withstand Australia’s harshest environments.

Both Safari’s V-Spec and R-Spec models are available, tailored to exceed expectations:

  • • V-Spec marked with ‘HF’ carries a lifetime warranty.
  • • R-Spec marked ‘R’ carries a 5-year warranty.

Features

  • Australian-owned Safari Automotive manufactures this product locally.
  • Prevention of water, dust, and debris particles entering the engine through the raised air intake.
  • Optimized airflow for the 4.2L Diesel TD42-I6 engine enhances performance.
  • Engine-safe operation in wet conditions due to the water-separating air ram which removes rainwater from the airstream.
  • Construction is UV-stable and durable, made from industrial-grade polyethylene.
  • Provides detailed instructions and templates for cutting guard panels, ensuring easy fitting for professionals or do-it-yourselfers.

Parts

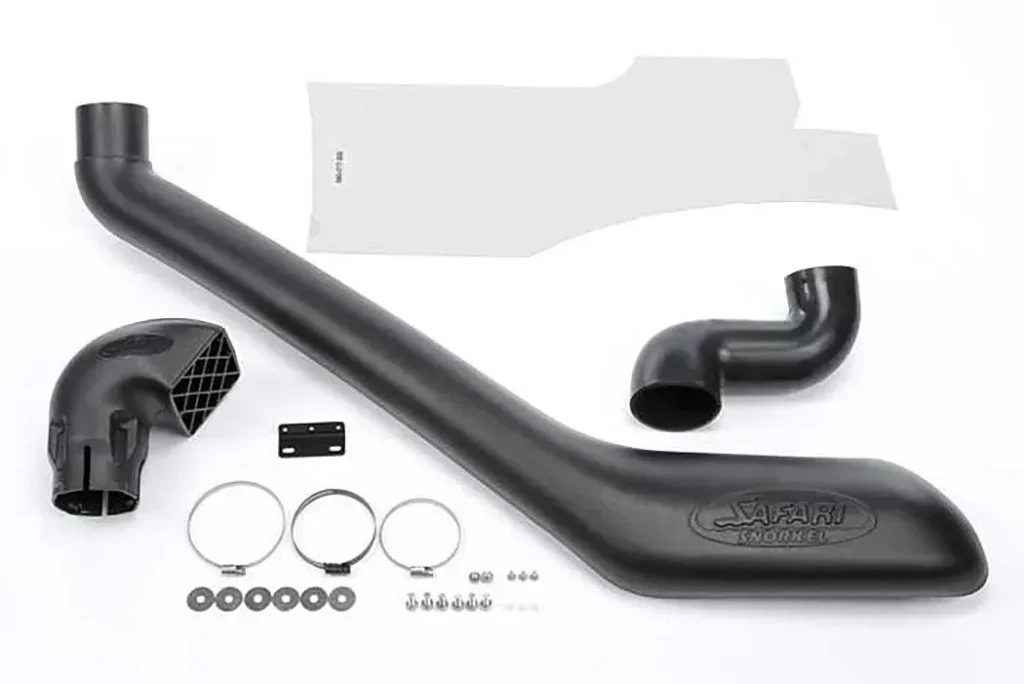

To upgrade your air intake system, we have provided parts for you:

  • Snorkel Body (SS15HFB)
  • 3 ½” Air Ram Assembly
  • Upper Mounting Bracket
  • Hex Bolts – Stainless Steel (6mm x 1.0 x 14mm SEMS)
  • Self-Tapping Screws – Stainless Steel (4.2mm x 13mm)
  • Plastic Inserts
  • Stainless Steel Studs (8mm x 1.25 x 25mm)
  • Body Washers – Stainless Steel (8mm x 32mm)
  • Nyloc Nuts – Stainless Steel (8mm x 1.25mm)
  • Snorkel Outlet Hose
  • 90mm OD x 60mm Long Joiner
  • Air Cleaner Entry Hose
  • 90mm OD x 48mm Long Joiner
  • Rubber Adaptor – 90mm ID x 152mm ID x 70mm Long
  • Hose Clamps:
    • 80/100mm
    • 90/110mm
    • 100/120mm
    • 150/170mm
    • No. 56 (Black)
  • Foam Tape – 25mm x 300mm
  • Guard Panel Template

GET A FREE QUOTE

FREQUENTLY ASKED QUESTIONS

Will this snorkel fit all GU Patrol models?

This specific snorkel (SS15HFD) is designed for the Series 1 Nissan GU Patrol (Y61) TD42-I6 4.2L Diesel models. For other variants, please reach out to our team for appropriate guidance.

What is the difference between V-Spec and R-Spec snorkels?

V-Spec snorkels come with a lifetime warranty, as they are manufactured using industrial-grade polyethylene. Recreational-grade materials which carry a 5-year warranty are used for R-Spec snorkels.

Can I install the snorkel myself?

Absolutely! The kit is designed with comprehensive fitting instructions and templates which aid in the DIY installation. Of course, if you wish, you can also have it professionally installed at any Opposite Lock Cardiff outlet.

Enhance your Nissan GU Patrol with the unmatched off-road defense and performance provided by the Safari SS15HFD snorkel.
