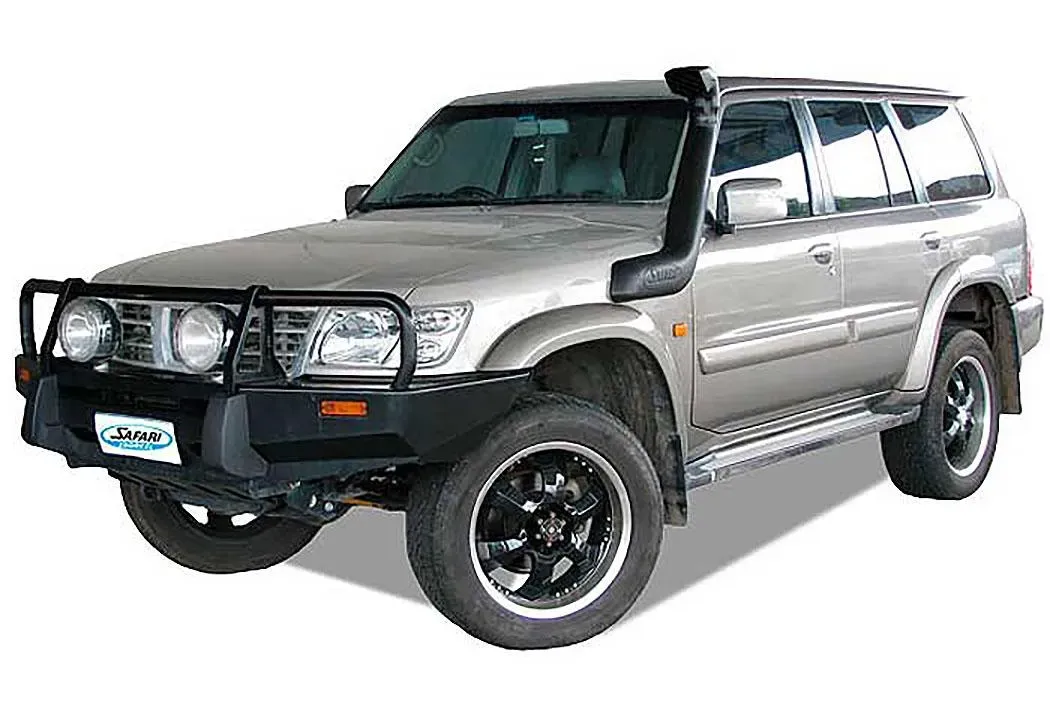

4X4 Safari Snorkel for the Nissan GU Patrol (Y61) Series 3 TD42-Ti4.2L Diesel
Safari Part Number: SS15HFB
4X4 Safari Snorkel for the Nissan GU Patrol (Y61) Series 3 TD42-Ti4.2L Diesel
Created specifically for the demands of the Nissan GU Patrol (Y61) Series 3 with the TD42-Ti4.2L diesel engine, the Safari SS15HFB Snorkel is a perfect solution to improve airflow and provide protection to your engine.
It is a high-performance snorkel that has been engineered to route the intake air source from under the bonnet up to a higher location on your car hence minimizing contaminant ingress such as water, dust and other debris. The system has been developed in order to deliver a greater volume of cooler cleaner air down into your factory air intake; this is necessary for maximizing efficiency and ensuring consistent performance of your engine irrespective of whether you are driving on road or off road.
A key feature of this snorkel is its advanced air ram that not only directs cool air into the engine but also helps separate water from the airflow thus reducing chances of engine damage during heavy rain or water crossings.
The Safari snorkel is made from UV-stabilized, cross-linked polyethylene with a robust outer shell that can withstand anything that the Australian outback throws at it. It allows your engine to breathe freely and safely while you are conquering trails or exploring remote outbacks.
You can choose between V-Spec (with lifetime warranty) or R-Spec (with 5-year warranty) versions, both proudly Australian-made using Safari’s commercial grade materials.
Australian-Made Excellence: Â Designed, molded, and manufactured by Safari Automotive in Australia.
Raised Air Inlet: Relocates your vehicle’s air intake point to reduce the risk of water and dust ingress.
Improved Airflow:Â Optimized for the Series 3 TD42-Ti 4.2L Diesel engine to enhance engine breathing.
Efficient Water Separator: An air ram removes moisture from incoming air—ideal for extreme weather conditions.
Durable Build:Â Constructed from high-strength, UV-resistant polyethylene for unmatched durability.
Comprehensive Fitting Kit:Â Includes a step-by-step installation template to make DIY fitting simple and accurate.
V-Spec & R-Spec Options:
V-Spec (HF model): Built with industrial-spec materials and backed by a lifetime warranty.
R-Spec (R model): Crafted from recreational-grade polyethylene and covered by a 5-year warranty.

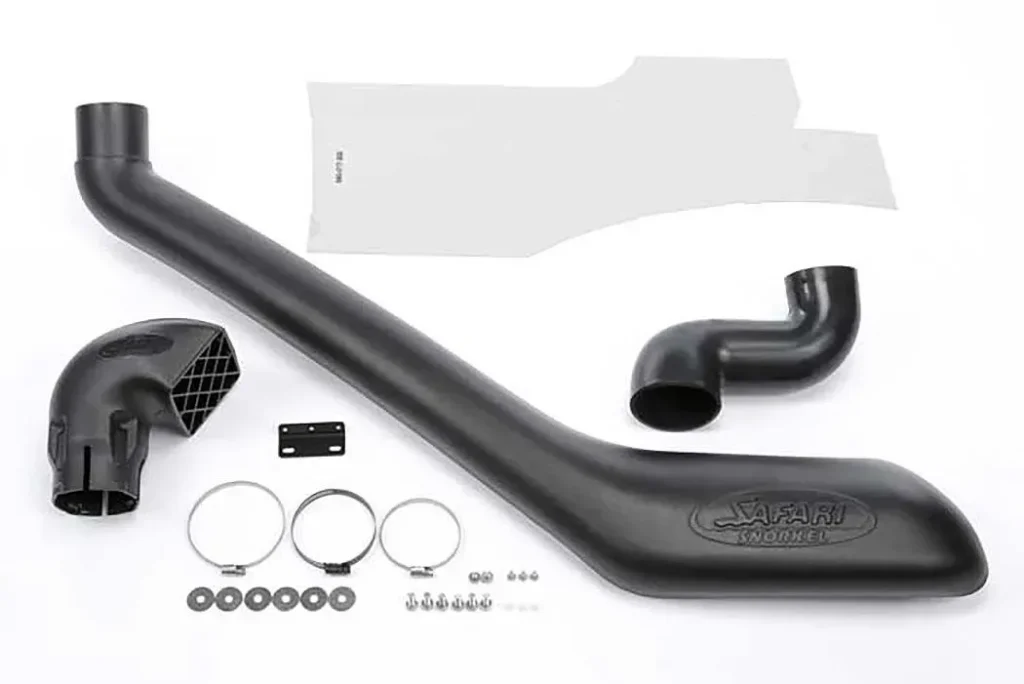

- Snorkel Body (SS15HFB)
- 3½” Air Ram Assembly
- Upper Mounting Bracket
- Stainless Steel Hex Bolt – 6mm x 1.0 x 14mm (SEMS)
- Stainless Steel S/T Screw – 4.2mm x 13mm
- Plastic Insert
- Stainless Steel Stud – 8mm x 1.25 x 25mm
- Stainless Steel Body Washer – 8mm x 32mm
- Stainless Steel Nyloc Nut – 8mm x 1.25mm
- Snorkel Outlet Hose
- 90mm OD x 60mm Joiner
- Air Cleaner Entry Hose
- Hose Clamps:
- 80/100mm
- 90/110mm
- 100/120mm
- No. 56 Black
Safari Snorkel Installation Guide
4×4 safari snorkel for the nissan gu patrol (y61) series 3 td42-ti4.2l diesel
FREQUENTLY ASKED QUESTIONS
Experience peak engine performance and top-tier protection with the Safari SS15HFB Snorke, your ultimate air intake upgrade for the rugged Australian terrain.
