Description
High Efficiency 24V Recovery Performance
The 24V configuration enhances overall efficiency by reducing electrical load while maintaining full pulling capacity. This results in smoother operation, improved thermal control, and more consistent performance during demanding recovery situations.
The 6HP series wound motor combined with a 218 to 1 planetary gear system delivers controlled torque and steady pulling power across a wide range of recovery conditions.
6HP Motor with Heavy Duty Geartrain
The high torque motor is engineered for sustained recovery loads, while the precision tuned geartrain ensures smooth and controlled operation. This combination allows the winch to perform reliably in mud, sand, steep terrain, and heavy load scenarios.
Lightweight V3X Platform with Maximum Strength
Despite its 12,000lb capacity, the V3X winch maintains a lightweight profile, reducing strain on the vehicle while preserving front end balance.
The compact yet robust chassis design makes it suitable for modern 4WD builds where both strength and weight management are critical.
Premium Synthetic Rope and Recovery Hardware
The winch is equipped with a 24 metre high strength synthetic rope designed for durability, flexibility, and safe handling under load.
The included MegaPro hook provides secure connection and enhanced recovery safety, while the CNC billet alloy fairlead ensures smooth rope operation and reduced wear during repeated use.
Built for Harsh Off Road Environments
With full IP68 waterproof and dustproof protection, the V3X winch is designed to operate in extreme environments including water crossings, mud, dust, and harsh terrain.
Sealed electrical components and a robust braking system ensure reliable operation even under continuous heavy load conditions.
Reliable Performance in Extreme Conditions
The integrated automatic brake system and sealed motor housing provide consistent load holding and safe recovery operation in unpredictable environments.
Key Specifications
- Rated line pull 12000lb 5450kg
- Motor 6HP 24V series wound
- Gear ratio 218 to 1 planetary
- Rope 24m x 10mm synthetic
- Control wired and wireless remote included
- Weight approximately 26.65kg complete setup
- Winch weight 19.7kg
- Dimensions 538mm x 158mm x 187mm
- Mounting pattern 254mm x 114.3mm
- IP rating IP68 waterproof and dustproof
What is Included

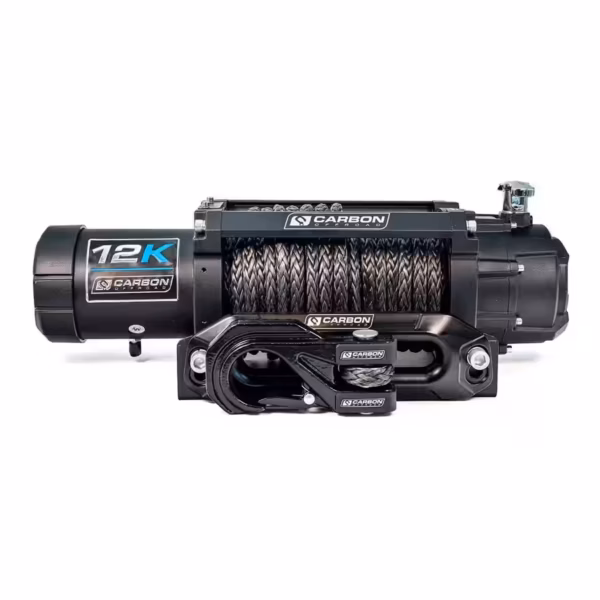

- Carbon 12K V3X 24V winch unit
- 24m synthetic rope pre installed
- MegaPro winch hook
- CNC billet alloy fairlead
- Wired remote control
- Wireless remote control
- Isolator switch and wiring kit
Installation and Fitment
Designed for 24V Touring and Off Road Vehicles
This winch is designed for vehicles operating on 24V electrical systems including touring 4WDs, commercial vehicles, and expedition builds.
Professional installation is recommended to ensure correct electrical setup, secure mounting, and optimal performance under load.
Ideal Applications
Built for Serious Off Road Recovery
This winch is ideal for:
- 4WD touring and overlanding setups
- Heavily loaded dual cab and wagon builds
- Remote area recovery situations
- Commercial and utility vehicles requiring reliable recovery
FREQUENTLY ASKED QUESTIONS
What is the advantage of a 24V winch
A 24V system reduces current draw, improves efficiency, and provides more stable performance under heavy load conditions.
Is this suitable for heavy vehicles
Yes, the 12000lb capacity makes it suitable for most 4WD vehicles including loaded touring setups.
Does it come with a complete kit
Yes, it includes synthetic rope, MegaPro hook, fairlead, remotes, and wiring system.
Can it handle water crossings
Yes, it features IP68 sealing for protection against water and dust ingress.
Is professional installation required
It is strongly recommended for proper electrical integration and safe operation.
Why Choose Carbon 12K V3X 24V Winch
The Carbon 12K V3X 24V winch delivers a balance of power, efficiency, and durability for serious off road recovery.
It is built for operators who require reliable performance, reduced electrical strain, and premium recovery components in one complete system designed for extreme conditions.
