Description
What Happens to an Unprotected Isuzu D-Max or Mazda BT-50?
Without proper underbody protection, your ute becomes vulnerable every time you leave sealed roads or tackle uneven terrain. Even a small impact underneath can lead to expensive repairs and downtime.
- Engine sump damage can cause rapid oil loss and major engine failure.
- Transmission housing impacts may lead to fluid leaks and loss of drive.
- Transfer case damage can affect your 4WD system when you need it most.
- Fuel tank punctures can leave you stranded in remote areas.
- Lower control arm strikes may affect steering, wheel alignment, and tyre wear.
Vehicle Compatibility and Fitment
| Vehicle Model | Variant | Year Range | Drivetrain | Compatible |
|---|---|---|---|---|
| Isuzu D-Max | SX | 2021–Present | 4WD | Yes |
| Isuzu D-Max | LS-M | 2021–Present | 4WD | Yes |
| Isuzu D-Max | LS-U | 2021–Present | 4WD | Yes |
| Isuzu D-Max | X-Terrain | 2021–Present | 4WD | Yes |
| Mazda BT-50 | XT | 2021–Present | 4WD | Yes |
| Mazda BT-50 | XTR | 2021–Present | 4WD | Yes |
| Mazda BT-50 | GT | 2021–Present | 4WD | Yes |
| Mazda BT-50 | Thunder | 2021–Present | 4WD | Yes |
Premium Protection Features Built for Australian Conditions
| Feature | Details |
|---|---|
| Brand | Rival 4×4 |
| SKU | 2333.9111.1.6.S |
| Vehicle Compatibility | Isuzu D-Max & Mazda BT-50 |
| Year Compatibility | 2021–Present |
| Material | 6mm High-strength aluminium alloy |
| Thickness | 6mm |
| Weight | Approx. 45kg Combined |
| Finish | Textured Matte Black Powder Coat |
| Corrosion Resistance | Excellent for coastal and wet environments |
| Installation Type | Direct Bolt-On |
| Mounting Points | Factory Mounting Locations |
| Drilling Required | No |
| Ventilation | Integrated Airflow Design |
| Coverage | Engine, transmission, transfer case, fuel tank & lower control arms |
| Off-Road Suitability | Touring, Beach, Rocky Tracks & Worksites |
| Maintenance Access | Designed for practical servicing access |
| ADR Friendly Design | Suitable for Australian touring setups |
| Warranty Support | Backed by Rival 4×4 quality standards |

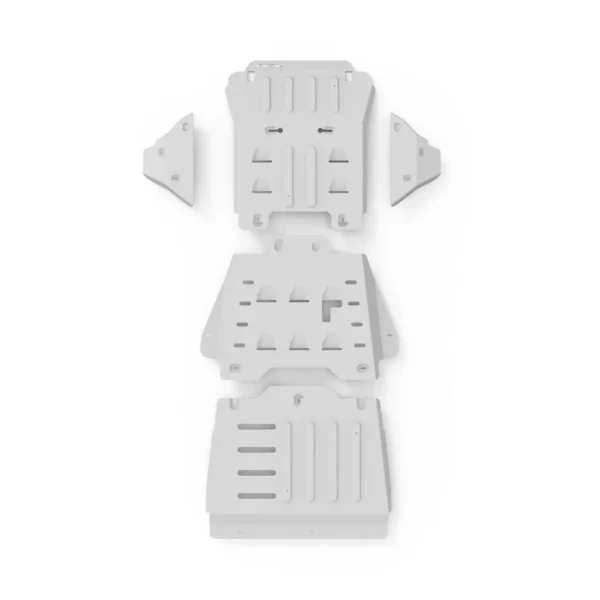

What Is Included With the Rival 4x4 Isuzu D-Max / Mazda BT-50 Bash Plate Set?
This complete Rival 4×4 protection package includes everything needed for a professional and secure installation. Each component is engineered to match factory mounting points for reliable fitment and long-term durability.
- The package includes all five aluminium bash plates for full underbody coverage from front to rear.
- A complete fitting kit with mounting hardware, bolts, brackets, and fasteners is supplied for easier installation.
- Detailed installation instructions are included to help simplify the fitting process for workshops or home mechanics.
Why the Rival 4x4 Bash Plate Set Suits the Isuzu D-Max and Mazda BT-50
The latest D-Max and BT-50 models are built for work and adventure, but factory protection can only go so far. This Rival 4×4 bash plate set adds the extra defence needed for serious Australian conditions while keeping your vehicle lighter and more capable than many steel alternatives.
Complete Underbody Coverage
Unlike single-plate upgrades, this bundle protects all major underbody components together. The engine, gearbox, transfer case, fuel tank, and lower control arms remain shielded from rocks, deep ruts, and unexpected impacts. This creates stronger overall protection for off-road touring and demanding worksites.
Lightweight Yet Strong Construction
The 6mm aluminium design offers an ideal balance between strength and reduced weight. Many steel systems can heavily impact payload and GVM capacity, while aluminium helps keep your ute practical for towing, camping gear, tools, and accessories.
Built for Harsh Australian Terrain
From beach driving near the coast to rough inland tracks, these bash plates are made to handle extreme Australian conditions. The corrosion-resistant coating helps reduce rust concerns caused by water crossings, mud, sand, and salt exposure.
Easy Bolt-On Installation
This Rival 4×4 system is designed around factory mounting points. There is no need for major cutting or drilling, which helps save installation time while keeping the setup clean and professional for your D-Max or BT-50.
Smart Airflow and Cooling Design
Ventilation openings help maintain airflow around important drivetrain components. This assists with cooling performance during slow off-road driving, heavy towing, and long-distance touring in hot Australian conditions.
Why Choose Aluminium Over Steel?
| Aluminium Bash Plates | Steel Bash Plates |
|---|---|
| Lighter overall weight | Much heavier |
| Better for GVM management | Can reduce payload capacity |
| Excellent corrosion resistance | More prone to rust |
| Ideal for beach driving | Requires more rust prevention |
| Easier handling during installation | Harder to lift and fit |
| Helps maintain fuel economy | Added weight affects efficiency |
| Flexible impact absorption | Can transfer harder impacts |
| Modern premium appearance | Industrial finish |
| Better suited for touring builds | Adds significant front-end weight |
| Lower long-term maintenance | More upkeep required |
| Strong 6mm construction | Usually thicker and heavier |
| Great balance of strength and weight | Prioritises brute strength only |
How to Install the Isuzu D-Max / Mazda BT-50 Bash Plate Set
Installing this Rival 4×4 bash plate set is straightforward for experienced home mechanics or professional installers. The bolt-on design uses factory mounting points for a cleaner and faster setup process.
- Raise the vehicle safely using ramps or jack stands.
- Remove any factory underbody guards if fitted.
- Align each bash plate with the factory mounting locations.
- Secure all supplied brackets, bolts, and hardware correctly.
- Tighten all fittings and check clearances before driving.
Need help with fitment? Contact Opposite Lock Cardiff today for expert advice on your D-Max or BT-50 setup.
Upgrade Your Underbody Protection Even Further
Protecting your ute properly means covering every vulnerable area underneath. Opposite Lock Cardiff can help you build a stronger off-road setup with additional Rival 4×4 protection options.
- Radiator and engine bash plate: Protects the radiator, engine sump, and front underbody from steep descents and rocky impacts.
- Transmission bash plate: Shields the gearbox housing from damage caused by rough terrain and hidden obstacles.
- Transfer case bash plate: Helps protect vital 4WD drivetrain components during technical off-road driving.
- Fuel tank bash plate: Adds strong protection for your fuel system during remote touring and outback travel.
- Lower control arms bash plate: Guards steering and suspension components from side impacts and trail damage.
Speak with Opposite Lock Cardiff today and build a complete underbody protection package for your next adventure.
Built for Touring, Off-Roading, and Everyday Confidence
The Rival 4×4 bash plate set is ideal for Australian drivers who expect their ute to handle more than city roads. Whether you use your D-Max or BT-50 for camping trips, towing, trade work, beach driving, or remote travel, this protection system helps reduce the risk of expensive underbody damage.
Drivers across Newcastle and regional NSW trust aluminium bash plates because they offer serious protection without unnecessary bulk. The lightweight construction, corrosion resistance, and precision fitment make this kit a practical long-term investment for both work and recreational vehicles.
Ready to protect your ute properly?
Get in touch with Opposite Lock Cardiff and upgrade your Isuzu D-Max or Mazda BT-50 with premium Rival 4×4 underbody protection today.
Why Choose Opposite Lock Cardiff
Opposite Lock Cardiff has built a strong reputation for supplying quality 4×4 accessories trusted by Australian drivers. We help ute owners find practical solutions that suit local driving conditions and real off-road use.
- Our team understands 4WD touring, off-road setups, and underbody protection requirements.
- We stock trusted brands like Rival 4x4 for proven durability and performance.
- Customers value our positive reviews and strong local reputation around Newcastle.
- We provide honest product advice based on real-world off-road experience.
- We help drivers build reliable touring and work-ready vehicle setups.
Upgrade your protection today with Opposite Lock Cardiff.
Contact Opposite Lock Cardiff Today for Isuzu D-Max & Mazda BT-50 Accessories
Looking for premium Isuzu D-Max or Mazda BT-50 accessories in Cardiff, Newcastle? Opposite Lock Cardiff can help you choose the right Rival 4×4 protection gear for touring, work, and serious off-road use. Speak with our experienced team today to secure the right bash plate solution for your vehicle.
Call us today on (02) 4058 1911 and upgrade your ute with trusted Rival 4×4 underbody protection.
FREQUENTLY ASKED QUESTIONS
Is this bash plate set suitable for serious off-road driving?
Yes. This Rival 4×4 bash plate set is designed specifically for demanding Australian conditions, including rocky trails, remote touring, beach driving, and uneven terrain. The full five-plate setup gives strong underbody protection where factory guards often fall short.
Does the kit require drilling or vehicle modifications?
No. The system uses factory mounting points for direct bolt-on installation. This helps keep the installation cleaner, faster, and more convenient for both workshops and experienced home mechanics.
Is aluminium strong enough for underbody protection?
Absolutely. The 6mm high-strength aluminium alloy provides excellent protection while keeping the weight lower than many steel alternatives. It is a popular choice for touring and off-road vehicles where weight management matters.
Will this fit both automatic and manual 4WD models?
Yes. This Rival 4×4 bash plate set is compatible with selected Isuzu D-Max and Mazda BT-50 4WD models from 2021 onwards, including automatic and manual variants where applicable.
Why is full underbody protection important for touring?
When travelling through remote areas, damage underneath the vehicle can quickly become expensive and dangerous. Protecting the engine, transmission, transfer case, fuel tank, and lower control arms helps reduce the risk of breakdowns and recovery costs during long-distance touring.
