The genuine Safari SS166HF snorkel is specifically engineered for Holden Colorado models built from July 2008 to 2011 with the 3.0L diesel engine.
This vehicle specific snorkel system is designed to deliver a high volume of cool, clean air directly into the factory air cleaner assembly while reducing the risk of dust and water ingestion.
Authorised Dealer
Licensed Dobinsons installer — Newcastle NSW
Authorised Dealer
Licensed Dobinsons installer — Newcastle NSW
Authorised Dealer
Licensed Dobinsons installer — Newcastle NSW
Authorised Dealer
Licensed Dobinsons installer — Newcastle NSW
- Description
- Additional information
- Reviews (0)
Description
RC HOLDEN COLORADO SAFARI SNORKEL
The SS166HF snorkel system is developed to meet the airflow demands of the 3.0L diesel engine used in RC Holden Colorado models.
By raising the air intake height, the snorkel reduces exposure to harmful airborne elements such as dust and water that can enter through the standard intake position.
The Safari air ram performs two key functions:
• Channels cool, clean air into the snorkel body
• Acts as an efficient water separator to remove rainwater from the incoming air stream
This dual function design helps maintain safe engine operation in wet and off road conditions.
The snorkel body and air ram are manufactured from UV stabilised cross linked polyethylene with substantial wall thickness to provide durability and long term resistance to harsh environmental exposure.
V SPEC CONSTRUCTION AND WARRANTY
The SS166HF is an HF model, identifying it as a V Spec snorkel.
V Spec snorkels are manufactured in Australia using Safari’s industrial specification UV stabilised polyethylene material and are backed by a lifetime warranty.
This specification provides added durability and long term performance reliability.
KEY FEATURES
- Australian designed, moulded and manufactured
- Raised air intake to help prevent dust and water ingestion
- Increased airflow for 3.0L diesel engine
- Water separating air ram design
- UV stable cross linked polyethylene construction
- Heavy duty wall thickness for strength and durability
- Comprehensive fitting guide with accurate template included
VEHICLE COMPATIBILITY
Suitable for:
- Holden Colorado RC
- Build dates 07/2008 to 2011
- Engine 3.0L Diesel
Always confirm vehicle build date and engine specification before ordering.
KIT CONTENT
Safari Snorkel GM/Isuzu Colorado/Colorado 7 4×4 Kit – Parts List
GM/Isuzu Colorado 4WD Snorkel for RC 07/2008 – 2011 3.0L Diesel Models – Safari Automotive GM/Isuzu Colorado 4×4 Snorkel Part Number SS166HF

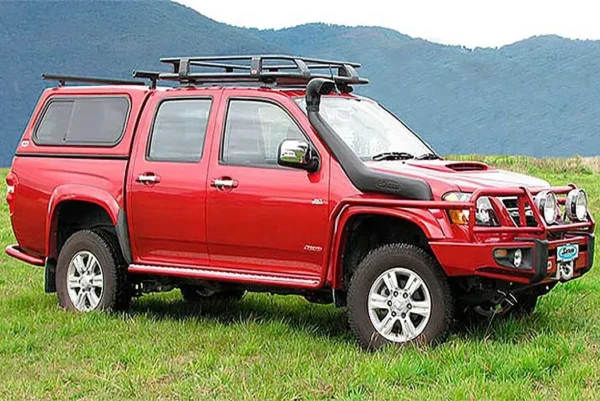

Actual model not shown.
| ITEM | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | 725-133-000R | BODY – SNORKE | 1 |
| 2 | 000-135-800 | 3 ½” AIR RAM ASSEMBLY | 1 |
| 3 | 000-441-200 | SLEEVE – AIR RAM | 1 |
| 4 | 725-032-000 | BRACKET – UPPER MOUNTING S/STEEL | 1 |
| 5 | 000-002-100 | BOLT – HEX – 6mm x 1.0 x 14mm | 2 |
| 6 | 000-958-350 | POP RIVET – 4.8mm x 14mm | 3 |
| 7 | 000-110 | STUD – 8mm x 1.25 x 26mm | 6 |
| 8 | 000-311-300 | WASHER – BODY – 8.5mm x 32mm | 6 |
| 9 | 000-205-300 | NUT – NYLOC – M8 x 1.25 | 6 |
| 10 | 725-024-000 | HOSE – AIR ENTRY | 1 |
| 11 | 000-909 | CLAMP – HOSE – 80/100mm | 2 |
| 12 | 000-914/B | CLAMP – AIR RAM – SIZE 56 (BLACK) | 1 |
| 13 | 725-017-000 | TEMPLATE | 1 |
FREQUENTLY ASKED QUESTIONS
Is this a genuine Safari snorkel?
Yes. SS166HF is an original Safari snorkel manufactured in Australia.
What does HF mean?
HF identifies this snorkel as a V Spec model manufactured from industrial specification polyethylene and backed by a lifetime warranty.
Does this snorkel increase airflow?
It is designed to meet the airflow demands of the 3.0L diesel engine while raising the intake position for improved protection.
Is installation hardware included?
Yes. The full fitting kit, bracket, hardware and template are included.
