Description

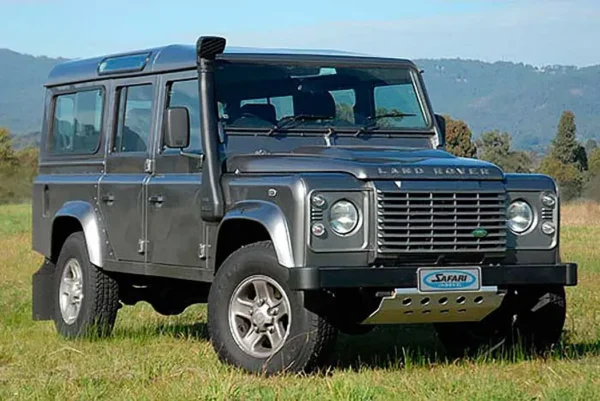

SAFARI SS580HF 4X4 SNORKEL FOR LAND ROVER DEFENDER TD4 2.4L DIESEL – MAXIMUM AIRFLOW AND ENGINE PROTECTION
The Safari Land Rover Defender TD4 snorkel system is designed to improve engine protection and airflow efficiency for demanding off road driving. By relocating the air intake higher on the vehicle, the snorkel significantly reduces the risk of dust ingestion and prevents water from entering the engine during river crossings or heavy rainfall.
The aerodynamic Safari air ram channels cooler outside air into the snorkel body while separating moisture before it reaches the air filter system, ensuring reliable engine performance in dusty tracks, muddy terrain, and harsh weather conditions.
KEY FEATURES OF SAFARI SS580HF SNORKEL
- Safari Automotive Australian designed, moulded and manufactured
- Raised air intake protects the engine from dust, debris and water
- Increased airflow for Land Rover Defender TD4 2.4L diesel engines
- Advanced water separating air ram technology
- Heavy duty UV stable cross linked polyethylene construction
- Strong snorkel body designed for extreme off road conditions
- Comprehensive fitting guide with accurate installation template included
VEHICLE COMPATIBILITY
Vehicle | Engine | Year | Safari Part Number |
Land Rover Defender TD4 | 2.4L Diesel | 10/2007 Onwards | SS580HF |
SNORKEL SYSTEM DESIGN
The Safari SS580HF snorkel raises the intake point to roof height, allowing the engine to breathe cooler and cleaner air compared to the factory intake position. This significantly reduces dust ingestion during off road driving and helps protect the engine when crossing water or driving in heavy rain.
The integrated Safari air ram system maximises airflow performance while separating rainwater from the intake stream before it reaches the air cleaner assembly.
CONSTRUCTION AND DURABILITY
Safari snorkels are built to withstand extreme environmental conditions. The snorkel body and air ram are manufactured from UV stable cross linked polyethylene, providing excellent resistance to sunlight, heat and impact.
The thick wall construction ensures exceptional strength and durability, making the snorkel suitable for serious off road adventures, touring vehicles and remote overland travel.
SAFARI SS580HF SNORKEL KIT PARTS LIST
Safari Snorkel Land Rover Defender TD4 4×4 Kit – Parts List
Land Rover Defender TD4 4WD Snorkel for 10/2007 Onwards 2.4L Diesel Models – Safari Automotive Land Rover Defender TD4 4×4 Snorkel Part Number SS580HF
Actual model not shown.
| ITEM | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | 810-133-500R | BODY – SNORKEL | 1 |
| 2 | 000-135-650 | 3 ½” AIR RAM ASSEMBLY | 1 |
| 3 | 810-032-200 | BRACKET – UPPER MOUNTING | 1 |
| 4 | 810-435-200 | GASKET – UPPER MOUNTING BRACKET | 1 |
| 5 | 000-002-100 | BOLT – HEX – 6mm x 1.0 x 14mm | 3 |
| 6 | 000-110 | STUD – S/S – 8mm x 1.25 x 25m | 3 |
| 7 | 000-311-300 | WASHER – BODY – S/S – 8mm x 30mm | 3 |
| 8 | 000-205-300 | NUT – NYLOC – S/S – 8mm x 1.25mm | 3 |
| 9 | 000-951 | SCREW – S/T – 4.2mm x 13mm | 4 |
| 10 | 000-958-500 | POP RIVET – 4.8mm x 15.75mm | 6 |
| 11 | 810-016-500 | GASKET – FOAM BODY – SELF ADHESIVE | 1 |
| 12 | 810-017-500 | TEMPLATE | 1 |
| 13 | 810-016-400 | GASKET – SEALING | 1 |
| 14 | 000-914/B | HOSE CLAMP – SIZE 56 (BLACK) | 1 |
INSTALLATION GUIDE
The Safari SS580HF snorkel kit includes a detailed installation guide along with a precision template to ensure accurate drilling and positioning on the vehicle guard panel. Proper installation ensures a fully sealed intake system and optimal airflow performance.
Professional installation is recommended to guarantee maximum engine protection and snorkel efficiency.
FREQUENTLY ASKED QUESTIONS
Is the Safari SS580HF snorkel compatible with all Defender TD4 models?
Yes. This snorkel is specifically designed for Land Rover Defender TD4 2.4L diesel models from October 2007 onwards.
Does installing a snorkel improve off road performance?
Yes. The raised air intake helps the engine breathe cleaner air and protects it from dust, water and debris during off road driving.
Does the snorkel kit include installation components?
Yes. The kit includes the snorkel body, air ram, brackets, hardware, gaskets, clamps and installation template required for fitting.
Is the SS580HF a genuine Safari snorkel?
Yes. The SS580HF is a genuine Safari Automotive snorkel designed and manufactured in Australia.
