Description

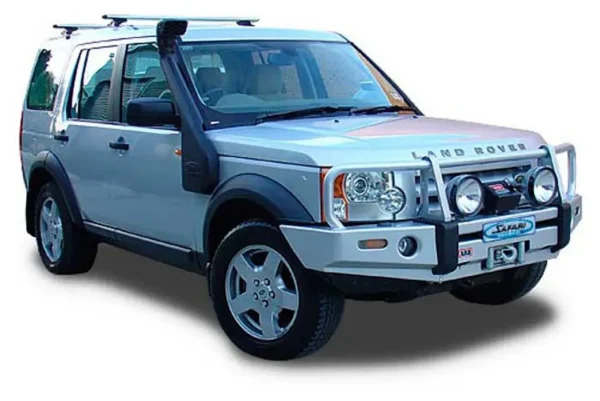

SAFARI SS385HF 4X4 SNORKEL FOR LAND ROVER DISCOVERY 3 2.7L DIESEL – MAXIMUM AIRFLOW & ENGINE PROTECTION
The Safari Land Rover Discovery 3 snorkel system is designed to improve engine protection and airflow performance. By relocating the air intake higher on the vehicle, the snorkel significantly reduces the risk of dust and water entering the air filter system when driving off-road.
The aerodynamic air ram channels cooler air into the snorkel body while separating moisture from the airflow before it reaches the air cleaner assembly. This ensures reliable engine operation even in heavy rain, deep water crossings, and dusty environments.
KEY FEATURES OF SAFARI SS385HF SNORKEL
Australian designed, moulded, and manufactured by Safari Automotive
Raised air intake prevents dust, water, and debris from entering the engine
Increased airflow for Land Rover Discovery 3 2.7L Diesel engines
Advanced water-separating air ram technology
Durable UV-stable cross-linked polyethylene construction
Heavy-duty snorkel body designed for harsh off-road conditions
Complete fitting guide with accurate installation templates included
VEHICLE COMPATIBILITY
| Vehicle | Engine | Year | Safari Part Number |
|---|---|---|---|
| Land Rover Discovery 3 | 2.7L Diesel | 2006 – 09/2009 | SS385HF |
SNORKEL SYSTEM DESIGN
The Safari SS385HF snorkel raises the vehicle’s air intake to roof height, allowing the engine to breathe cooler and cleaner air. This design helps reduce dust ingestion during off-road driving and protects the engine when crossing water or driving in heavy rainfall.
The high-efficiency air ram improves airflow performance while also acting as a water separator, ensuring that moisture does not reach the air filter or engine.
CONSTRUCTION AND DURABILITY
Safari snorkels are engineered to withstand the harshest environments. The snorkel body and air ram are constructed from UV-stable cross-linked polyethylene, which provides exceptional resistance to heat, sunlight, and physical impacts.
The thick wall construction ensures the snorkel remains strong and durable even in extreme off-road conditions, making it ideal for serious 4WD and overland vehicles.
Safari SS385HF Snorkel Kit Parts List
Safari Snorkel Land Rover Discovery 3 4×4 Kit – Parts List
Land Rover Discovery 3 4WD Snorkel for 2006 – 09/2009 2.7L Diesel Models – Safari Automotive Land Rover Discovery 3 4×4 Snorkel Part Number SS385HF
| ITEM | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | 830-133-800 | BODY – SNORKEL | 1 |
| 2 | 000-135-800 | 3½” AIR RAM ASSEMBLY | 1 |
| 3 | 830-032-800 | BRACKET – UPPER MOUNTING | 1 |
| 4 | 000-002-100 | BOLT – HEX – 6mm x 1.0 x 14mm (SEMS) | 3 |
| 5 | 000-958-350 | POP RIVET – 4.8mm x 14mm | 8 |
| 6 | 000-110 | STUD – S/S – 8mm x 1.25 x 25mm O/L | 2 |
| 7 | 000-311 | WASHER – BODY – 8mm x 30mm | 2 |
| 8 | 000-205 | NUT – NYLOC – 8mm x 1.25mm | 2 |
| 9 | 000-108 | STUD – S/S 6mm x 1.0 x 25mm OL | 3 |
| 10 | 000-321 | WASHER – BODY – 6mm x 20mm | 3 |
| 11 | 000-204 | NUT – NYLOC – 6mm x 1.0mm | 3 |
| 12 | 830-023-800 | DUCT – CONNECTING | 1 |
| 13 | 000-887-075 | CUFFED HOSE – 82mm ID x 750mm | 1 |
| 14 | 000-909 | CLAMP HOSE – 80/100mm | 2 |
| 15 | 830-410-800 | SEAL – FOAM | 1 |
| 16 | 830-017-800 | TEMPLATE – GUARD PANEL | 1 |
| 17 | 830-217-800 | TEMPLATE – INNER GUARD | 1 |
| 18 | 830-217-825 | TEMPLATE – MOUNTING BRACKET | 1 |
| 19 | 830-217-850 | TEMPLATE – ‘A’ PILLAR TRIM | 1 |
| 20 | 000-914/B | HOSE – CLAMP – SIZE 56 (BLACK) | 1 |
INSTALLATION GUIDE
The Safari SS385HF snorkel kit includes a detailed installation guide along with precision templates for the guard panel, inner guard, mounting bracket, and A-pillar trim. These templates ensure accurate positioning and proper alignment with the vehicle’s factory air intake system.
Professional installation is recommended to guarantee a fully sealed intake system and optimal performance.
FREQUENTLY ASKED QUESTIONS
Is the Safari SS385HF snorkel compatible with all Discovery 3 engines?
Yes. This snorkel is specifically designed for Land Rover Discovery 3 2.7L Diesel models manufactured between 2006 and September 2009.
Does installing a snorkel improve engine protection?
Yes. The snorkel raises the air intake, helping protect the engine from dust, water, and debris during off-road driving.
Does the snorkel include all installation components?
Yes. The kit includes air ram, snorkel body, brackets, hardware, hoses, clamps, and installation templates.
Is this a genuine Safari snorkel product?
Yes. The SS385HF snorkel is a genuine Safari Automotive product designed and manufactured in Australia.
