Description

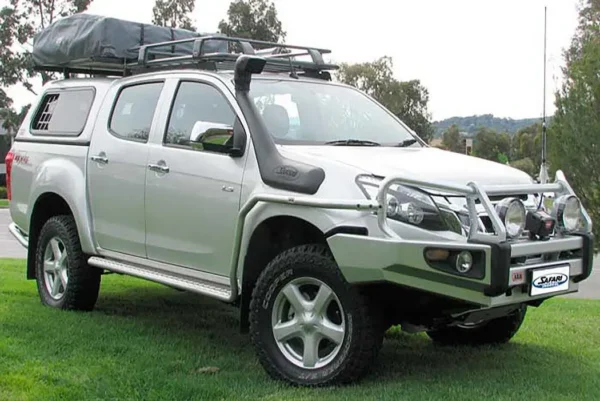

SAFARI 4X4 SNORKEL FOR ISUZU D MAX AND MU X 3.0L DIESEL 06 2012 ONWARDS
The Safari SS175HF snorkel system is engineered to meet the airflow demands of the 3.0L diesel engine found in Isuzu D Max and MU X models from June 2012 onwards.
By raising the air intake height, the snorkel reduces the risk of water and dust entering the airbox during off road driving, touring or harsh weather conditions across Newcastle and the Hunter Region.
The advanced Safari air ram performs two critical functions. It channels cool, clean air into the snorkel body while acting as an efficient water separator, removing rainwater from the incoming air stream to help maintain safe engine operation during heavy storms.
Manufactured from UV stable cross linked polyethylene with substantial wall thickness, the snorkel body is built for long term durability in demanding Australian conditions.
KEY FEATURES
- Australian designed, moulded and manufactured
- Raised air intake for improved engine protection
- Increased airflow for 3.0L diesel performance
- Water separating air ram design
- UV stable cross linked polyethylene construction
- Heavy duty wall thickness for extreme off road use
- Comprehensive fitting guide with accurate guard and inner guard templates included
Safari Part Number SS175HF
LOCAL SUPPLY AND INSTALLATION IN CARDIFF AND NEWCASTLE NSW
We supply and professionally install Safari snorkels for Isuzu D Max and MU X models at our workshop servicing
- Cardiff
- Newcastle
- Hunter Region
Professional installation ensures
- Correct guard and inner guard cutting using supplied templates
- Secure upper mounting bracket fitment
- Proper sealing to the factory airbox
- Clean and precise finish
Customers searching for Isuzu D Max snorkel supply and fit in Cardiff or MU X snorkel installation in Newcastle can contact our team for availability and booking.
KIT CONTENTS
Safari Snorkel GM/Isuzu D-Max/MU-X 4×4 Kit – Parts List
GM/Isuzu D-Max/MU-X 4WD Snorkel for 06/2012 onwards 3.0L Diesel Models – Safari Automotive GM/Isuzu D-Max/MU-X 4×4 Snorkel Part Number SS175HF
Actual model not shown.
| ITEM | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | 740-133-000 | BODY – SNORKEL (SS175HF) | 1 |
| 2 | 000-135-800 | 3 ½” AIR RAM ASSEMBLY | 1 |
| 3 | 740-032-000 | BRACKET – UPPER MOUNTING | 1 |
| 4 | 000-002-100 | BOLT – HEX – 6mm x 1.0 x 14mm (SEMS) | 2 |
| 5 | 000-951-300 | SCREW – S/T – 4.2mm x 16mm – S/S | 3 |
| 6 | 000-960 | INSERT – PLASTIC | 3 |
| 7 | 000-110 | STUD – 8mm x 1.25 x 25mm – S/S | 6 |
| 8 | 000-311-300 | WASHER – BODY – 8mm x 30mm – S/S | 6 |
| 9 | 000-205-300 | NUT – NYLOC – 8mm x 1.25mm – S/S | 6 |
| 10 | 740-024-000 | HOSE – AIR ENTRY | 1 |
| 11 | 740-217-000 | TEMPLATE – INNER GUARD | 1 |
| 12 | 000-909 | CLAMP – HOSE – 80/100mm | 1 |
| 13 | 000-910 | CLAMP – HOSE – 90/110mm | 1 |
| 14 | 000-914/B | CLAMP – HOSE – SIZE 56 (BLACK) | 1 |
| 15 | 740-017-000 | TEMPLATE – GUARD PANEL | 1 |
FREQUENTLY ASKED QUESTIONS
Does this snorkel suit both D Max and MU X models?
Yes. It suits 06 2012 onwards 3.0L Diesel Isuzu D Max and MU X models including the 2017 facelift.
Is it compatible with 4x2 models?
No. It does not suit 4×2 narrow body models.
Do you offer supply only?
Yes. We offer both supply only and professional installation in Cardiff and Newcastle NSW.
