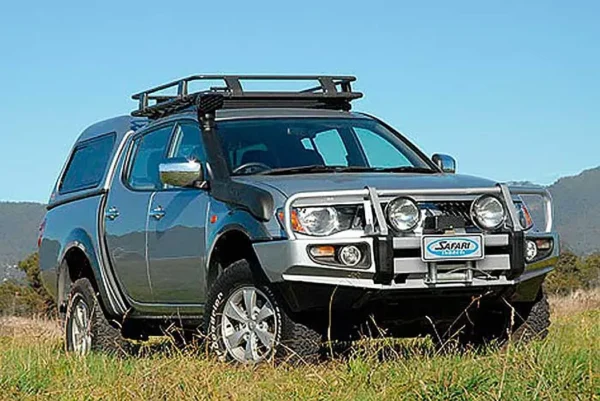

Mitsubishi Triton MN 2.5L Diesel Snorkel for Engine Protection, Water Crossing Safety and Clean Airflow
The Safari SS661HF snorkel is specifically developed for Mitsubishi Triton MN 2.5L Diesel engines to meet high airflow demands under extreme driving conditions. By raising the air intake above bonnet level, this system allows the engine to draw cleaner, cooler air while reducing the risk of ingesting water and dust.
This design plays a critical role in maintaining engine efficiency, especially during off-road driving where standard air intake systems are vulnerable to contamination.
High Airflow Performance for Diesel Engine Efficiency
The integrated Safari air ram is engineered to direct clean air into the snorkel while removing moisture from the intake stream. This built-in water separation function helps protect the engine during heavy rain and water crossings.
Advanced Water Separation Air Ram System
The integrated Safari air ram is engineered to direct clean air into the snorkel while removing moisture from the intake stream. This built-in water separation function helps protect the engine during heavy rain and water crossings.
Heavy Duty Construction for Off Road Durability
Constructed from UV stable cross linked polyethylene, the snorkel body offers exceptional resistance to impact, heat and environmental wear. The thick wall design ensures durability in harsh off-road conditions, making it suitable for long-term use.
Vehicle Specific Design and Secure Fitment
The SS661HF snorkel is precision engineered for Mitsubishi Triton MN models, ensuring proper alignment with the factory air intake system. The kit includes mounting hardware, templates and fittings required for installation.
Important Fitment Note:
This snorkel is not compatible with models fitted with HID headlamps.
Key Features of Safari Snorkel Mitsubishi Triton MN
- Safari Automotive Australian designed and manufactured snorkel system
- Raised air intake for improved engine protection from dust and water
- Optimised airflow for Mitsubishi Triton MN 2.5L Diesel engines
- Water separating air ram for safer operation in wet conditions
- UV stable polyethylene construction for durability
- Complete installation kit with templates and mounting hardware
Vehicle Compatibility
Compatible Vehicle
Mitsubishi Triton MN
Compatible Engine
2.5L Diesel
Fitment Note
Not suitable for models with HID headlamps
Safari Part Number
SS661HF
Safari SS661HF Snorkel Kit Components
Mitsubishi Triton 4WD Snorkel for MN 2.5L Diesel Models – Safari Automotive Mitsubishi Triton 4×4 Snorkel Part Number SS661HF
*EXCEPT Models fitted with HID Headlamps
Actual model not shown.
| ITEM | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | 525-133-000 | BODY – SNORKEL (SS660HF) | 1 |
| 2 | 000-135-800 | 3 ½” AIR RAM ASSEMBLY | 1 |
| 3 | 525-032-000 | BRACKET – UPPER MOUNTING | 1 |
| 4 | 000-002-100 | BOLT – HEX – 6mm x 1.0 x 14mm (SEMS) | 3 |
| 5 | 000-951 | SCREW – S/T – 4.2mm x 13mm | 3 |
| 6 | 000-960 | INSERT – PLASTIC | 3 |
| 7 | 000-110 | STUD – S/S – 8mm x 1.25 x 25mm O/L | 8 |
| 8 | 000-352 | WASHER – BODY – 8mm x 45mm – S/S | 4 |
| 9 | 000-311-300 | WASHER – BODY – 8.5mm x 32mm – S/S | 4 |
| 10 | 000-205-300 | NUT – NYLOC – 8mm x 1.25 – S/S | 8 |
| 11 | 525-024-200 | HOSE – AIR ENTRY | 1 |
| 12 | 525-023-200 | ADAPTOR – AIR CLEANER | 1 |
| 13 | 000-958-300 | POP RIVET – 4.8mm x 12mm | 3 |
| 14 | 000-909 | CLAMP – HOSE – 80/100mm | 2 |
| 15 | 525-098-200 | BOTTLE – RADIATOR OVERFLOW – PLASTIC | 1 |
| 16 | 525-098-300 | CAP – OVERFLOW BOTTLE – 38mm ID – WHITE | 1 |
| 17 | 525-096-000 | BRACKET – OVERFLOW BOTTLE MOUNTING | 2 |
| 18 | 000-1018-300 | BOLT – B/H – 5mm x 0.8 x 8mm – S/S | 2 |
| 19 | 000-951-500 | SCREW – S/T – 4.8mm x 16mm | 2 |
| 20 | 000-917-100 | CLAMP – SPRING – 5/16″ | 1 |
| 21 | 000-530 | ADAPTOR – HOSE – 8mm/8mm | 1 |
| 22 | 000-838-035 | HOSE – RADIATOR OVERFLOW EXTENSION | 1 |
| 23 | 000-987-100 | CABLE TIE – 2.5mm x 100mm | 3 |
| 24 | 000-914/B | CLAMP – HOSE – SIZE 56 (BLACK) | 1 |
| 25 | 525-017-000 | TEMPLATE – SNORKEL BODY | 1 |
Installation and Fitment
The Safari SS661HF snorkel kit includes detailed fitting instructions and templates to assist installation. Proper installation ensures a sealed air intake system aligned with the factory airbox for optimal performance and protection.
FREQUENTLY ASKED QUESTIONS
Is this snorkel compatible with all Mitsubishi Triton MN models?
This snorkel is designed for Mitsubishi Triton MN 2.5L Diesel models and is not compatible with variants fitted with HID headlamps.
Does this snorkel improve engine performance?
This snorkel supports engine efficiency by supplying cleaner and cooler air, which helps maintain consistent performance in demanding conditions.
Is the Safari snorkel suitable for water crossings?
The raised air intake and water separating air ram help protect the engine during water crossings when installed correctly.
Does the snorkel kit include all installation components?
The kit includes mounting hardware, brackets, hoses and templates required for installation.
