Description
Why Install a Safari Snorkel on Your GU Patrol?
Essential Protection for Australia's Toughest Conditions
Your Patrol’s engine depends on a continuous supply of clean air. Dusty tracks, river crossings, muddy trails and extreme weather conditions can expose your factory air intake system to harmful contaminants.

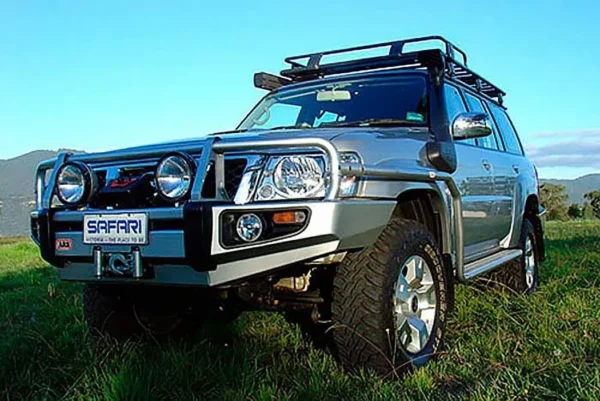

The Safari Snorkel relocates the air intake to roof height, helping reduce the amount of dust, debris and moisture entering the air intake system while allowing access to cleaner airflow during off road driving.
For many experienced Patrol owners, a snorkel is considered one of the most important upgrades for long-distance touring and remote area travel.
Engineered Specifically for the GU Patrol ZD30 Diesel
Vehicle Specific Design and Proven Performance
The Safari SS17HFB is purpose-built for Nissan GU Patrol Y61 Series 4 models powered by the ZD30DDT 3.0L Diesel engine.
Unlike generic snorkels, every component has been engineered to integrate perfectly with the Patrol’s body design, airbox system and engine airflow requirements.
This ensures superior fitment, reliable sealing and long-term durability in demanding environments.
Increased Airflow for ZD30 Diesel Performance
Designed to Meet High Airflow Demands
The ZD30 diesel engine requires consistent airflow to perform efficiently, especially when towing, touring or operating in harsh off road conditions.
Safari designed the SS17HFB to deliver a large volume of cool, clean air directly into the factory air cleaner assembly while helping reduce the intake of dust and contaminants commonly found on Australian roads and tracks.
The result is improved airflow quality and enhanced protection for your engine.
Advanced Safari Air Ram Technology
Water Separating Design for Maximum Protection
The Safari Air Ram performs two critical functions.
It efficiently channels clean air into the snorkel system while simultaneously acting as a highly effective water separator. Rainwater and moisture are removed from the incoming airflow before reaching the vehicle’s air intake system.
This additional protection is especially valuable during:
- Water crossings
- Heavy rain conditions
- Tropical environments
- Muddy tracks
- Long-distance remote touring
The result is greater confidence when travelling through unpredictable conditions.
Built for Extreme Australian Conditions
UV Stable Heavy Duty Construction
The Safari Snorkel body and air ram are manufactured using UV stable cross linked polyethylene for exceptional strength and durability.
The thick-wall construction is designed to withstand impacts from branches, rocks and harsh environmental conditions while maintaining structural integrity over years of use.
Whether you’re exploring Cape York, crossing the Simpson Desert or touring Australia’s remote regions, the Safari Snorkel is built to handle the challenge.
Professional Installation Available in Newcastle
Installed by Experienced 4WD Specialists
Correct snorkel installation is critical to ensuring reliable performance and maximum engine protection.
At Opposite Lock Cardiff, our experienced technicians professionally install Safari Snorkels using manufacturer-approved procedures and templates to ensure proper fitment and sealing.
We proudly service customers throughout:
- Newcastle
- Cardiff
- Lake Macquarie
- Charlestown
- Belmont
- Maitland
- Cessnock
- Hunter Valley
- Port Stephens
Key Features
- Suits Nissan GU Patrol Y61 Series 4 ZD30DDT 3.0L Diesel
- Safari Part Number SS17HFB
- Australian designed and manufactured
- Raised air intake system
- Increased airflow performance
- Water separating Safari Air Ram
- UV stable cross linked polyethylene construction
- Heavy-duty off road design
- Vehicle-specific engineering
- Comprehensive fitting guide and template included
Technical Specifications
Product Specifications
Vehicle Compatibility: Nissan GU Patrol Y61 Series 4
Engine Compatibility: ZD30DDT 3.0L Diesel
Part Number: SS17HFB
Construction Material: UV Stable Cross Linked Polyethylene
Air Ram Type: Safari Water Separating Air Ram
Manufacturing: Australian Made
Installation Template Included: Yes
Vehicle Specific Design: Yes
What's Included
Complete Safari Snorkel Kit
The Safari SS17HFB kit includes everything required for installation:
| ITEM | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | 485-133-200 | BODY – SNORKEL (SS17HF) | 1 |
| 2 | 000-135-800 | 3 ½” AIR RAM ASSEMBLY | 1 |
| 3 | 485-124-200 | DUCT – INNER (SS17HF) | 1 |
| 4 | 485-123-500 | DUCT – CONNECTING (SS16HF) | 1 |
| 5 | 485-032-000 | BRACKET – UPPER MOUNTING | 1 |
| 6 | 000-002-100 | BOLT–HEX 6mm x 1.0mm x 14mm(SEMS) | 6 |
| 7 | 000-951-300 | SCREW – S/T 4.2mm x 16mm – S/S | 4 |
| 8 | 000-960 | INSERT – PLASTIC | 3 |
| 9 | 000-110 | STUD S/S 8mm x 1.25mm x 25mm O/L | 3 |
| 10 | 000-311-300 | WASHER – BODY 8mm x 30mm – S/S | 3 |
| 11 | 000-205-300 | NUT – NYLOC 8mm x 1.25mm – S/S | 3 |
| 12 | 000-806-250 | HOSE – RUBBER 82mm ID x 65mm | 1 |
| 13 | 000-909 | CLAMP – HOSE 80/100mm | 2 |
| 14 | 000-321 | WASHER – BODY 6mm x 20mm | 6 |
| 15 | 485-017-200 | TEMPLATE | 1 |
| 16 | 000-914/B | HOSE CLAMP – SIZE 56 (BLACK) | 1 |
FREQUENTLY ASKED QUESTIONS
Does this snorkel suit all GU Patrol models?
No. This snorkel is specifically designed for Nissan GU Patrol Y61 Series 4 vehicles fitted with the ZD30DDT 3.0L Diesel engine.
What are the benefits of a Safari Snorkel?
A Safari Snorkel helps provide cleaner airflow, additional engine protection and improved suitability for dusty and wet off road environments.
Can I use this snorkel for water crossings?
The raised air intake and water separating air ram provide added protection during water crossings when combined with proper vehicle preparation.
Is the Safari Snorkel Australian made?
Yes. Safari Snorkels are designed, moulded and manufactured in Australia.
Is professional installation recommended?
Yes. Proper installation ensures maximum performance, sealing integrity and long-term reliability.
Do you install Safari Snorkels in Newcastle?
Yes. Opposite Lock Cardiff supplies and installs Safari Snorkels throughout Newcastle and the wider Hunter Region.
Why Choose the Safari SS17HFB Snorkel?
The Safari SS17HFB combines Australian engineering, proven durability and vehicle-specific design to deliver exceptional engine protection and airflow performance for Nissan GU Patrol owners.
Trusted by touring enthusiasts, off road adventurers and diesel Patrol owners across Australia, it remains one of the most respected snorkel systems available for the GU Patrol platform.
For expert advice, professional installation and genuine Safari products, contact Opposite Lock Cardiff today.
