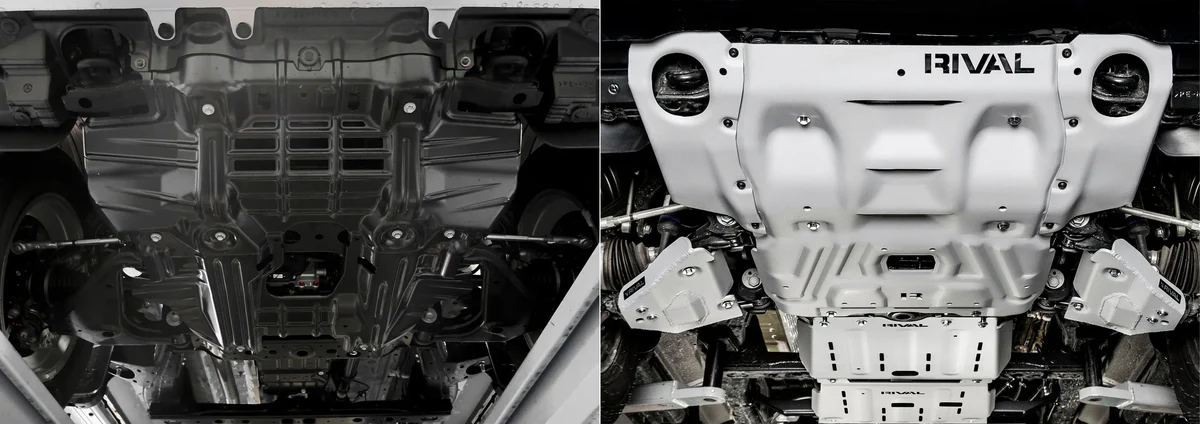

What Happens to an Unprotected Toyota Hilux?
Without proper underbody protection, your Toyota Hilux can suffer expensive mechanical damage during off-road driving. Rocks, washouts, deep ruts, tree roots, and rough terrain can strike critical components underneath the vehicle. Even one solid hit can damage your drivetrain and leave you stranded far from help.
- Radiator damage: Sharp stones and debris can puncture the radiator and cause sudden overheating.
- Cracked engine sump: Heavy impacts may crack the sump and lead to serious engine failure.
- Transmission housing dents: Unprotected gearbox housings can leak fluid after hard impacts.
- Transfer case damage: Rocks and ruts can damage the transfer case and affect 4WD performance.
- Costly recovery bills: A simple underbody strike can quickly turn into an expensive recovery and repair job.
Vehicle Compatibility and Fitment
| Vehicle Model | Variant | Year Range | 4×4 Compatible | Fitment Status |
|---|---|---|---|---|
| Toyota Hilux AN120 | SR5 Dual Cab | 2015–2025 | Yes | Compatible |
| Toyota Hilux AN130 | Rogue | 2018–2025 | Yes | Compatible |
| Toyota Hilux | GR Sport | 2023–2025 | Yes | Compatible |
| Toyota Fortuner | Crusade | 2015–2025 | Yes | Compatible |
| Toyota Fortuner | GXL | 2015–2025 | Yes | Compatible |
| Toyota Hilux | WorkMate 4WD | 2015–2025 | Yes | Compatible |
Built Tough for Real Australian Off-Roading
| Feature | Details |
|---|---|
| Brand | Rival 4×4 |
| SKU | 2333.5712.2.6.S |
| Product Type | Complete Bash Plate Set (4-Piece) |
| Vehicle Compatibility | Toyota Hilux & Fortuner 4×4 |
| Material | 6mm High-Strength Aluminium Alloy |
| Finish | Textured Matte Black Powder Coat |
| Combined Weight | Approx. 32.5kg |
| Coverage | Radiator, Engine, Transmission & Transfer Case |
| Installation | Direct Bolt-On Installation |
| Drilling Required | No |
| Mounting Points | Factory Mounting Locations |
| Corrosion Resistance | Excellent (Aussie Coastal & Outback Ready) |
| Ventilation Design | Integrated Airflow Openings |
| Off-Road Protection | Heavy-Duty Underbody Armour |
| ADR Friendly | Designed for Australian Conditions |
| Warranty Support | Manufacturer Backed |
| Maintenance Access | Smart Service-Friendly Design |
What is Included With the Rival 4x4 Toyota Hilux Bash Plate Set?
This complete Rival 4×4 protection package comes with everything needed for a clean and hassle-free installation. The kit is designed to deliver full drivetrain protection straight out of the box while maintaining proper alignment and secure factory-style fitment.

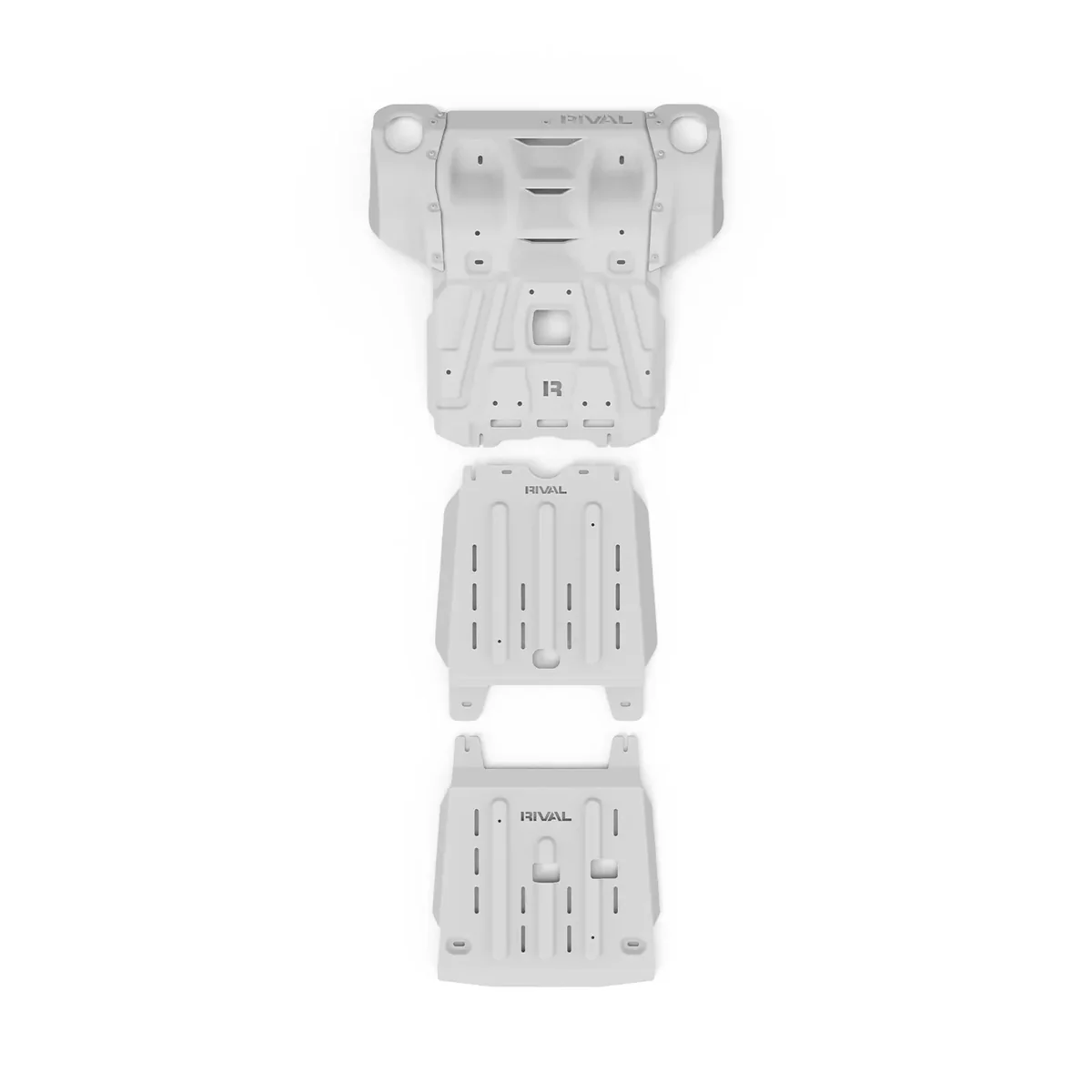

- Full bash plate package: Includes radiator, engine, transmission, and transfer case aluminium bash plates in the new design layout.
- Complete mounting hardware kit: Supplied with brackets, bolts, fasteners, and fitting components for proper installation.
- Step-by-step installation guide: Easy-to-follow instructions help make the fitting process smoother for installers and home mechanics.
Why the Rival 4x4 Bash Plate Set Suits the Toyota Hilux
The Toyota Hilux is built for hard work and off-road touring, but factory underbody protection is often limited for serious terrain. This Rival 4×4 bash plate package gives your vehicle the extra protection needed for Australian conditions while keeping weight manageable and performance reliable.

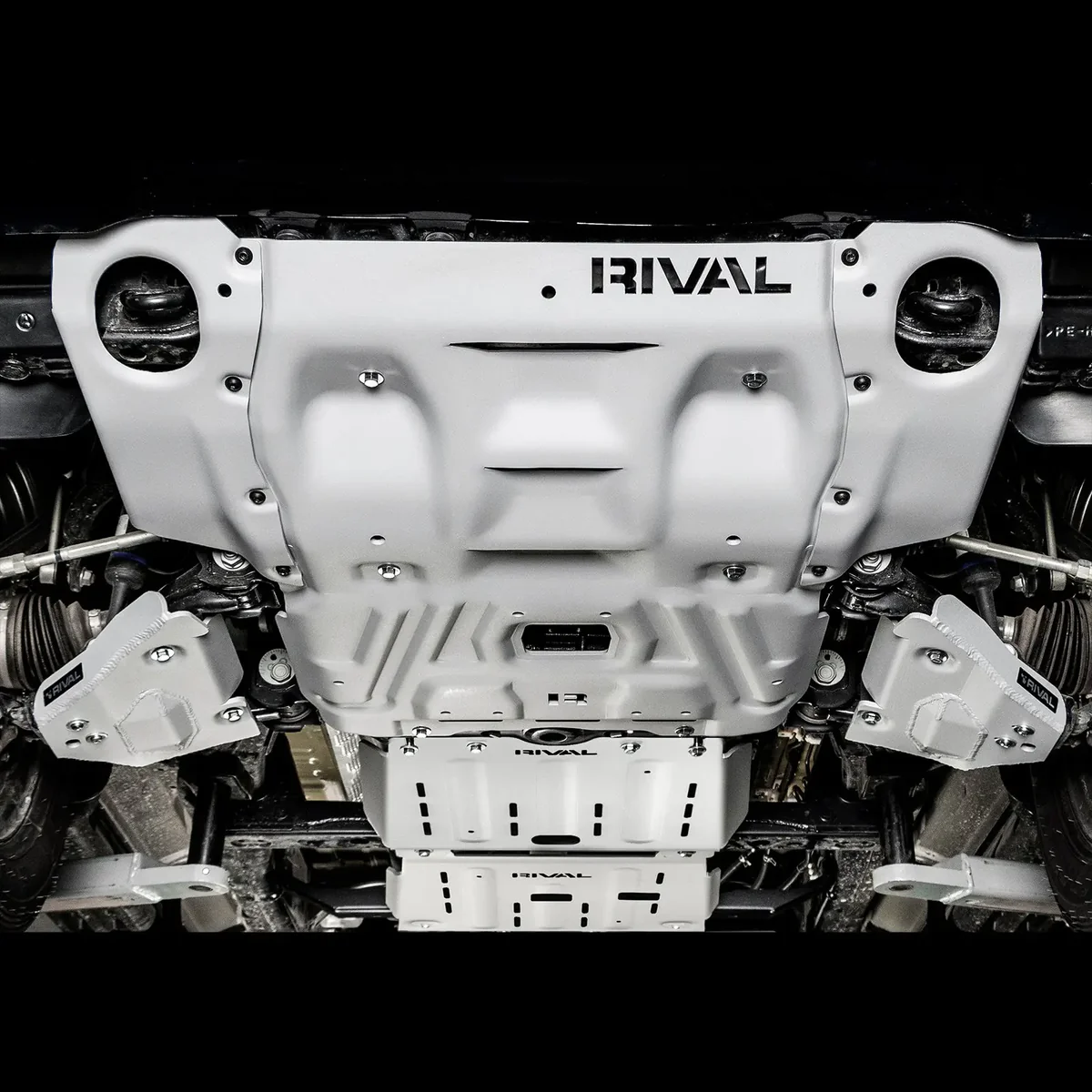

Full Drivetrain Coverage
This bash plate set protects the most important underbody components from front to rear. The radiator, engine sump, gearbox, and transfer case all receive continuous protection, helping reduce the risk of costly damage during off-road driving.
Built for Australian Tracks
From rocky climbs to corrugated roads and muddy station tracks, this bash plate system is engineered for harsh Aussie terrain. The powder-coated aluminium construction handles moisture, dust, mud, and salt exposure with confidence.
Lightweight Yet Strong
The 6mm aluminium alloy design delivers excellent impact resistance without loading unnecessary weight onto the vehicle. This helps maintain handling, suspension performance, fuel economy, and GVM balance for touring setups.
Simple Bolt-On Installation
No cutting, welding, or drilling is required during installation. The plates are designed around factory mounting points for accurate fitment and easier installation, making them ideal for both workshops and DIY enthusiasts.
Ideal for Touring and Work Use
Whether your Hilux is used for weekend camping, towing, worksite access, or long-distance touring, this underbody protection package helps keep vital components safe from unexpected damage on rough roads.
Why Choose Aluminium Over Steel?
| Aluminium Bash Plates | Steel Bash Plates |
|---|---|
| Lightweight construction | Heavier overall weight |
| Better fuel efficiency | Can increase fuel usage |
| Easier on suspension systems | Adds extra suspension load |
| Naturally corrosion resistant | More prone to rust |
| Great for beach driving | Salt can cause corrosion |
| Strong impact absorption | Can transfer harsh impact force |
| Easier vehicle handling | May affect vehicle balance |
| Better for touring setups | Reduces payload capacity |
| Lower maintenance needs | Requires rust management |
| Modern 4WD friendly | Adds more strain to GVM |
How to Install the Toyota Hilux Bash Plate Set
Installing this Rival 4×4 bash plate set is straightforward for most experienced mechanics and capable DIY owners. The kit is designed to line up with factory mounting points for quicker fitting and cleaner alignment across all four protection plates.
- Safely raise the vehicle using a hoist or jack stands.
- Remove factory protection plates if fitted.
- Position the radiator bash plate first and secure loosely.
- Install the engine, transmission, and transfer case plates in sequence.
- Tighten all mounting hardware and inspect alignment before driving.
Need help with fitting? Speak with the team at Opposite Lock Cardiff today for expert advice on your Toyota Hilux protection setup.
Complete Your 4WD Protection Setup
Protecting your underbody properly means covering every vulnerable area of your 4WD. Opposite Lock Cardiff can help you build a complete protection package for your touring or off-road setup.
- Radiator and engine bash plate: Protects the radiator, engine sump, and front underbody from steep descents and rocky terrain.
- Transmission bash plate: Adds extra protection to the gearbox housing during off-road driving.
- Transfer case bash plate: Helps shield critical 4WD transfer components from rock strikes and debris.
- Fuel tank bash plate: Protects the fuel tank from hidden impacts, sharp rocks, and rough tracks.
- Lower control arms bash plate: Adds protection to vulnerable suspension components during technical off-road use.
Upgrade your Toyota Hilux with a complete Rival 4×4 underbody protection package today at Opposite Lock Cardiff.
Built for Serious 4WD Adventures Across Australia
When you head off-road, proper underbody protection becomes essential. This Toyota Hilux bash plate set gives drivers the confidence to tackle rough terrain without exposing vital drivetrain components to unnecessary damage. From remote touring tracks to steep rocky climbs, Rival 4×4 protection helps reduce risk while improving peace of mind behind the wheel.
At Opposite Lock Cardiff in Newcastle, we work with 4WD owners who demand quality gear that lasts. This Rival 4×4 bash plate package suits touring setups, tradie vehicles, work utes, and serious off-road builds looking for durable aluminium protection without excessive weight. It is a smart long-term investment for protecting your Toyota Hilux on Australian roads and tracks.
Shop now or contact OLC Cardiff to secure your Rival 4×4 Toyota Hilux bash plate set today.
Why Choose OLC Cardiff?
Opposite Lock Cardiff is trusted by local 4WD owners for premium off-road accessories, honest advice, and quality service. We understand what Australian drivers need because we live and breathe 4WD touring and vehicle protection.
- Experienced local 4WD team: Our team understands real off-road conditions and proper vehicle protection solutions.
- Premium quality products: We stock trusted brands like Rival 4×4 built for Australian conditions.
- Positive customer feedback: Many Newcastle 4WD owners trust OLC Cardiff for reliable products and service.
- Practical product advice: We help customers choose protection gear that suits their driving needs.
- Trusted Newcastle location: Conveniently located in Cardiff, Newcastle for local 4WD owners and touring enthusiasts.
Call (02) 4058 1911 today and speak with the OLC Cardiff team about your Toyota Hilux protection setup.
Contact Opposite Lock Cardiff for Toyota Hilux Bash Plate Protection
Looking for premium Toyota Hilux accessories and underbody protection in Newcastle? Opposite Lock Cardiff supplies high-quality Rival 4×4 bash plate systems built for Australian conditions. Whether you use your Hilux for work, touring, towing, or weekend off-roading, our team can help you choose the right protection package for your setup.
Visit Opposite Lock Cardiff in Newcastle or call (02) 4058 1911 today to secure your Toyota Hilux Rival 4×4 bash plate set.
FREQUENTLY ASKED QUESTIONS
Is this Rival 4x4 bash plate set suitable for everyday driving?
Yes. This bash plate set is designed for both daily driving and off-road use. It helps protect critical underbody components from road debris, potholes, rough tracks, and unexpected impacts while maintaining practical everyday usability.
Does this bash plate set require drilling during installation?
No. The Rival 4×4 bash plate set uses factory mounting points on compatible Toyota Hilux and Fortuner models. This allows for a bolt-on installation without permanent vehicle modifications.
Is aluminium strong enough for serious off-road use?
Absolutely. The 6mm high-strength aluminium alloy used by Rival 4×4 is engineered for harsh off-road conditions. It offers excellent impact resistance while remaining lighter than traditional steel alternatives.
Will this bash plate package fit Toyota Fortuner models?
Yes. This product is compatible with Toyota Fortuner 4×4 models from 2015 onwards, including selected diesel and petrol variants.
Why is underbody protection important for the Toyota Hilux?
The Toyota Hilux is often used on rough terrain where exposed components can easily be damaged. Proper bash plates help protect the radiator, engine, transmission, and transfer case from costly impacts and off-road hazards.
