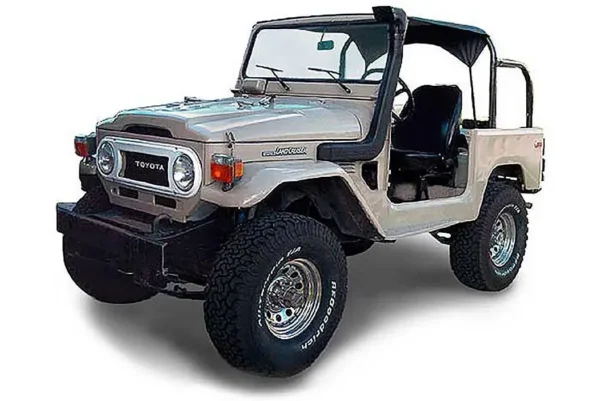

The Safari snorkel system is designed specifically for Toyota 40, 42, 45 and 47 Series Landcruiser models with 3.4L Diesel engines produced between 01/1980 and 12/1984. It includes a durable snorkel body, air ram, mounting components, and fitting accessories required for installation.
| Specification | Details |
|---|---|
| Product Type | 4×4 Snorkel |
| Vehicle Compatibility | Toyota 40, 42, 45 & 47 Series LandCruiser |
| Engine Compatibility | 3B 3.4L Diesel |
| Vehicle Year Range | 01/1980 – 12/1984 |
| Safari Part Number | SS401HF |
| Air Ram Size | 3 1/2 inch |
| Material | UV-resistant cross-linked polyethylene |
| Intake Design | Raised air intake with water separating air ram |
| Application | Touring, towing, camping, remote travel and off-road driving |
| Country Design | Australian designed and manufactured |
Parts Included
The Safari snorkel kit includes the following components required for installation:
| Item | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 325-133-000R | BODY – SNORKEL | 1 |
| 2 | 000-135-250 | 3 1/2″ AIR RAM ASSEMBLY | 1 |
| 3 | 325-032-000 | BRACKET – UPPER MOUNTING | 1 |
| 4 | 000-002-100 | BOLT – HEX – M6 x 14MM (SEMS) | 2 |
| 5 | 000-043 | BOLT – S/H – 8mm x 1.25 x 20mm | 2 |
| 6 | 000-305 | WASHER – STAR – 8mm | 2 |
| 7 | 000-110 | STUD – S/S – 8mm x 1.25 x 25mm – O/L | 3 |
| 8 | 000-311-300 | WASHER – BODY – 8mm | 3 |
| 9 | 000-205-300 | NUT – NYLOC – 8mm x 1.25 | 3 |
| 10 | 000-885-200 | CUFFED HOSE – 75mm I.D. x 1100mm | 1 |
| 11 | 000-907 | CLAMP – HOSE – 60/80 | 2 |
| 12 | 325-017-000 | TEMPLATE | 1 |
| 13 | 000-987-365 | TIE – CABLE – 365mm | 1 |
| 14 | 000-804-112E | HOSE – JOINER 70mm ID x 28mm | 1 |
| 15 | 000-914/B | HOSE CLAMP – SIZE 56 (BLACK) | 1 |
Product Details
The 4×4 SNORKEL suitable for the Toyota 40, 42, 45 & 47 Series Landcruiser 01/1980 – 12/1984 3.4L Diesel moves the engine air intake position higher on the vehicle. Air closer to ground level often contains more dust, sand, and road particles during off-road travel. By using a raised air intake, the snorkel helps the engine access cleaner air from a higher position. This makes it a practical upgrade for drivers who regularly travel through dusty tracks, remote Australian conditions, and challenging off-road environments.
Material and Care
The 4×4 SNORKEL suitable for the Toyota 40, 42, 45 & 47 Series Landcruiser 01/1980 – 12/1984 3.4L Diesel uses UV-resistant cross-linked polyethylene for strength and long-term outdoor use. This material provides impact resistance while helping the snorkel handle the demands of regular 4×4 travel. Stainless steel hardware helps improve corrosion resistance in different weather conditions, while the EPDM rubber hose offers heat resistance and flexibility for reliable operation.
