Description
Specifications

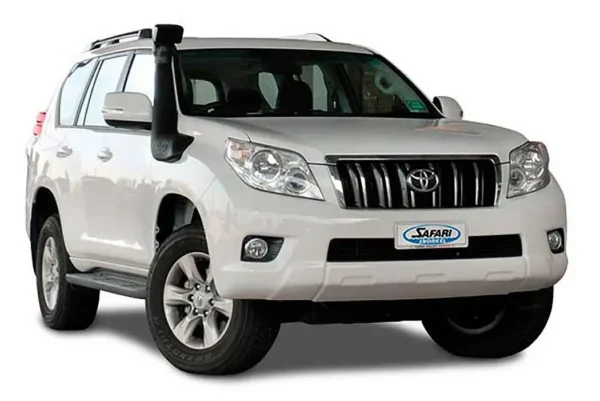

The 4×4 SNORKEL suitable for the Toyota Prado 150 Series 10/2009 Onwards 4.0L Petrol 1GR-FE is manufactured to suit specific vehicle requirements. The following specifications outline the key details of this Safari snorkel system.
| Specification | Details |
|---|---|
| Product Name | 4×4 SNORKEL suitable for the Toyota Prado 150 Series 10/2009 Onwards 4.0L Petrol 1GR-FE |
| Safari Part Number | SS189HF |
| Vehicle Compatibility | Toyota Prado 150 Series 10/2009 Onwards 4.0L Petrol 1GR-FE |
| Product Type | Safari Snorkel |
| Application | 4×4 Vehicles |
| Air Ram Size | 3 ½” Air Ram Assembly |
| Material | UV stable cross-linked polyethylene |
| Vehicle Use | Touring, towing, camping and off-road driving |
| Intake Design | Raised air intake system |
| Protection Features | Dust protection, water protection and debris reduction |
| Hardware | Stainless steel mounting hardware |
Parts Included
The 4×4 SNORKEL suitable for the Toyota Prado 150 Series 10/2009 Onwards 4.0L Petrol 1GR-FE kit includes all required components supplied with the Safari snorkel system. The parts are designed to support correct installation and reliable operation.
| Item | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 365-133-000 | BODY – SNORKEL (SS188HF) | 1 |
| 2 | 000-135-800 | 3 ½” AIR RAM ASSEMBLY | 1 |
| 3 | 365-032-000 | BRACKET – UPPER MOUNTING | 1 |
| 4 | 000-002-100 | BOLT – HEX – 6mm x 1.0 x 14mm (SEMS) | 2 |
| 5 | 000-951 | SCREW – S/T – 4.2mm x 13mm – S/S | 3 |
| 6 | 000-960 | INSERT – PLASTIC | 3 |
| 7 | 000-110 | STUD – 8mm x 1.25 x 25mm – S/S | 5 |
| 8 | 000-376 | WASHER – RUBBER – 8.5mm x 33mm | 5 |
| 9 | 000-311-300 | WASHER – BODY – 8mm x 30mm – S/S | 5 |
| 10 | 000-205-300 | NUT – NYLOC – 8mm x 1.25mm – S/S | 5 |
| 11 | 365-024-200 | HOSE – AIR ENTRY | 1 |
| 12 | 000-1911 | CLAMP – HOSE – 100/120mm | 1 |
| 13 | 000-1913 | CLAMP – HOSE – 120/140mm | 1 |
| 14 | 000-914/B | CLAMP – HOSE – SIZE 56 (BLACK) | 1 |
| 15 | 365-016-000 | GASKET – FOAM BODY (SELF ADHESIVE) | 1 |
| 16 | 365-017-000 | TEMPLATE – GUARD PANEL | 1 |
Product Details
The 4×4 SNORKEL is suitable for the Toyota Prado 150 Series 10/2009 Onwards 4.0L Petrol 1GR-FE and relocates the vehicle’s intake point higher on the body of the vehicle. This position helps the engine draw air from an area that generally contains less dust compared to lower intake locations. During remote travel, dusty tracks and Australian conditions, cleaner air availability can help reduce the amount of contaminants entering the intake system.
The Safari air ram included with this system performs more than one function. It directs incoming air into the snorkel body while helping separate rainwater from the airflow path. The design also helps remove larger airborne particles before they move further through the intake system. This reduces the amount of unwanted material reaching the air filter during dusty or wet trips.
Material and Care
The 4×4 SNORKEL suitable for the Toyota Prado 150 Series 10/2009 Onwards 4.0L Petrol 1GR-FE uses UV-resistant cross-linked polyethylene construction for long-term durability in Australian conditions. This material provides good impact resistance while helping the snorkel withstand regular exposure to outdoor environments. The system includes stainless steel hardware designed to resist corrosion and support secure mounting. An EPDM rubber hose connects the snorkel system to the intake, offering heat resistance and flexibility during vehicle operation.
Why Buy from Opposite Lock Cardiff?
Opposite Lock Cardiff specialises in quality 4×4 accessories for drivers who use their vehicles for touring, work and off-road adventures. Genuine Safari snorkels are available for a wide range of vehicle applications, including the 4×4 SNORKEL suitable for the Toyota Prado 150 Series 10/2009 Onwards 4.0L Petrol 1GR-FE. The team can provide helpful product advice and assist with checking vehicle compatibility before purchase.
If you are searching for the best 4×4 snorkel provider in Newcastle, Cardiff, Opposite Lock Cardiff offers genuine products, practical advice and support for your vehicle modification needs. The workshop helps customers choose suitable 4×4 accessories based on their driving requirements.
Enquire Today
Contact Opposite Lock Cardiff for current availability, vehicle compatibility and product advice for the 4×4 SNORKEL suitable for the Toyota Prado 150 Series 10/2009 Onwards 4.0L Petrol 1GR-FE. Speak with the team about your Safari snorkel requirements and find the right solution for your vehicle.
- Call Opposite Lock Cardiff on (02) 4058 1911.
- Visit us at Unit 1/31 Munibung Road, Cardiff NSW 2285.
