Description
High Performance 12,000lb Winch Built for Real Recovery Situations
This winch is engineered for demanding recovery scenarios where reliability is critical — from deep mud recoveries and soft sand extractions to steep climbs and heavily loaded touring setups.
The 12,000lb rated line pull provides the capability required for dual cab utes, SUVs and fully equipped off-road vehicles, ensuring consistent pulling power when it matters most.
A high-output 6HP motor combined with a 3-stage planetary gear system delivers smooth torque, controlled line speed and reliable performance under load. This ensures precise operation in technical recoveries where control is just as important as power.
Designed for Flexibility with BYO Hook Setup
This BYO Hook configuration is built for experienced off-roaders who prefer customised recovery setups.
By removing the standard hook, you can run your own recovery solution — whether that’s a soft shackle, upgraded hook or specialised recovery system without paying for components you don’t need.
It’s a smarter, cleaner setup for those who already have premium recovery gear in place.
Vehicle Compatibility and Fitment
| Specification | Detail |
| Fitment | Universal 4×4 Winch Mount |
| Mount Pattern | 254mm x 114.3mm |
| Vehicle Type | 4WDs, Utes, SUVs |
| Power System | 12V (24V optional) |

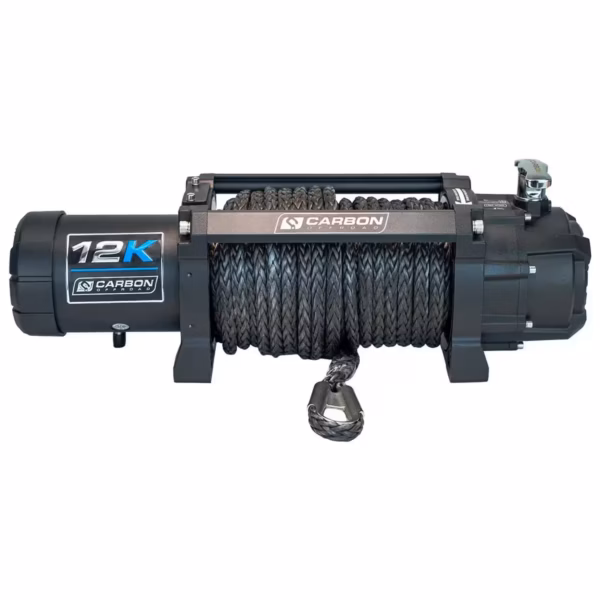

Key Features of Carbon 12K Winch V3X
Lightweight High-Strength Design
At just 19.7 kg, this winch significantly reduces front-end load compared to heavier alternatives while maintaining full recovery capability.
6HP High Output Motor
Delivers strong and consistent pulling power across all load levels, ensuring reliable recovery in extreme conditions.
3-Stage Planetary Gear System
Provides smooth operation, efficient torque transfer and dependable performance under pressure.
IP68 Waterproof Protection
Fully sealed against water and dust ingress, making it ideal for river crossings, mud and harsh environments.
Wireless and Wired Remote Control
Operate safely from a distance with included wireless remote, or use the wired controller for precise control.
Synthetic Rope Included
Comes with a 24m high-strength synthetic rope for safer and lighter recovery operations.
Performance Benefits for Off Road and Touring Use
This winch is designed to perform in real-world off-road environments without compromising vehicle dynamics.
Its lightweight construction helps maintain front suspension performance, steering response and fuel efficiency, especially important for vehicles running full touring setups.
With controlled line speed and consistent torque delivery, it allows safer and more precise recoveries in challenging terrain.
Construction and Durability
Built using premium components and advanced engineering, the Carbon V3X winch is designed for long-term durability in harsh conditions.
The IP68 rating ensures protection against water, dust and debris, while the automatic load-holding brake system provides added safety during operation.
This winch is engineered to perform consistently even under repeated heavy use.
What Is Included in the Kit
- 1x Carbon 12K Winch V3X
- Synthetic rope (24m x 10mm)
- CNC alloy fairlead
- Control box with cables
- Wireless remote control
- Wired remote control
- Isolator switch
- Mounting hardware
Note: Hook or soft shackle is NOT included.
Installation and Fitment
Difficulty Level: Moderate
Professional installation is recommended to ensure correct setup and safe operation.
Compatible with standard winch mounting systems using the industry-standard bolt pattern. No major modifications required for most bull bars or winch-compatible mounts.
Vehicle Compatibility and Fitment
| Specification | Detail |
| Rated Line Pull | 12,000 lbs (5,450 kg) |
| Motor | 12V DC 6HP |
| Gear Ratio | 218:1 |
| Geartrain | 3-Stage Planetary |
| Rope | 24m Synthetic |
| Weight | 19.7 kg |
| Waterproof Rating | IP68 |
| Battery Requirement | 650 CCA Minimum |
Why Choose Carbon 12K Winch
Carbon winches are engineered for performance, reliability and real-world off-road use.
With a focus on strength-to-weight efficiency, advanced sealing technology and proven durability, they deliver dependable recovery performance when it matters most.
Backed by a lifetime mechanical warranty and 5-year electrical and water ingress protection, this winch is built for long-term confidence.
Ideal Applications
- Off-Road Recovery
- Touring and Overlanding
- Mud and Sand Driving
- Rock Crawling
- Worksite and Utility Vehicles
FREQUENTLY ASKED QUESTIONS
Is the Carbon 12K Winch strong enough for my 4x4 or ute?
Yes. With a 12,000lb (5,450 kg) rated line pull, this winch is suitable for most dual-cab utes, SUVs and fully loaded touring vehicles. It provides enough pulling power for heavy recoveries in mud, sand, rock and steep terrain conditions commonly experienced in Australian off-road environments.
What does “BYO Hook” mean?
BYO Hook means “Bring Your Own Hook.” This version of the winch does not include a recovery hook or soft shackle. It is intended for users who already have their own recovery hardware or prefer to customise their setup with aftermarket hooks or soft shackles.
Is this winch waterproof and suitable for harsh conditions?
Yes. The winch is IP68 rated, meaning it is fully sealed against dust ingress and protected against water exposure. It is designed for extreme conditions including river crossings, beach recoveries, heavy rain, mud, and pressure washing after use.
Can I install this winch on my vehicle?
Yes, if your bull bar or mounting plate supports the standard 254mm x 114.3mm winch bolt pattern. While experienced users can install it themselves, professional installation is strongly recommended to ensure safe wiring, correct torque settings and reliable operation.
What warranty does the Carbon 12K Winch include?
This winch comes with a lifetime mechanical warranty, a 5-year electrical warranty, and a 5-year water ingress warranty. It is built for long-term use in demanding off-road and touring conditions.
