Description

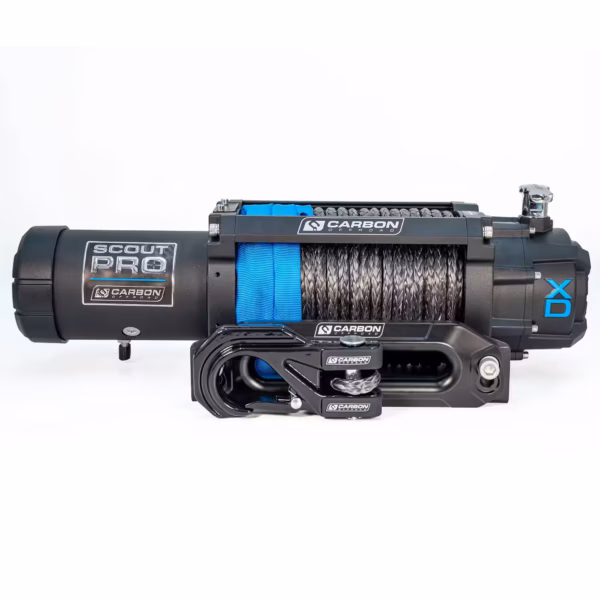

High Speed Performance Built for Off-Road Performance
Lightweight Aluminium Construction
The RS9 is designed around speed. Its 8HP series wound motor and optimised 80 to 1 gear ratio deliver some of the fastest line speeds available in its class.
This allows you to reduce recovery time significantly, maintain momentum on the track and operate more efficiently in demanding environments where delays can cost progress.
Extended Rope Capacity for Maximum Reach
Metre Synthetic Rope Advantage
One of the key advantages of the RS9 High Speed Winch Kit is its extended 42 metre synthetic rope. This additional length provides access to distant anchor points without the need for extensions.
In real world off road scenarios, this means greater flexibility, faster setup and more efficient recoveries when navigating open terrain, mud tracks or remote areas.
Lightweight Design That Supports Vehicle Performance
Optimised for Handling and Balance
The RS9 is built on the Carbon Offroad V3 chassis, designed to reduce unnecessary front end weight while maintaining structural strength.
This helps preserve suspension performance, steering response and overall vehicle balance, which is critical for high speed off road driving and technical terrain.
Built for Harsh Off Road Conditions
Reliable in Mud Water and Dust
With IP68 rated sealing, the RS9 is designed to operate in extreme conditions including water crossings, mud and dusty environments.
The synthetic rope system enhances usability and safety while maintaining strong and consistent pulling performance across different terrains.
Key Specifications
- Rated Line Pull 9000lb 4080kg
- Motor 8.0HP 12V Series Wound
- Gear Ratio 80 to 1 Performance Geartrain
- Rope 8mm x 42m Spectra Synthetic
- IP Rating IP68 Waterproof and Dustproof
- Weight Approx 26kg with full setup
- Dimensions 572mm x 158mm x 187mm
- Mounting Pattern 254mm x 114.3mm

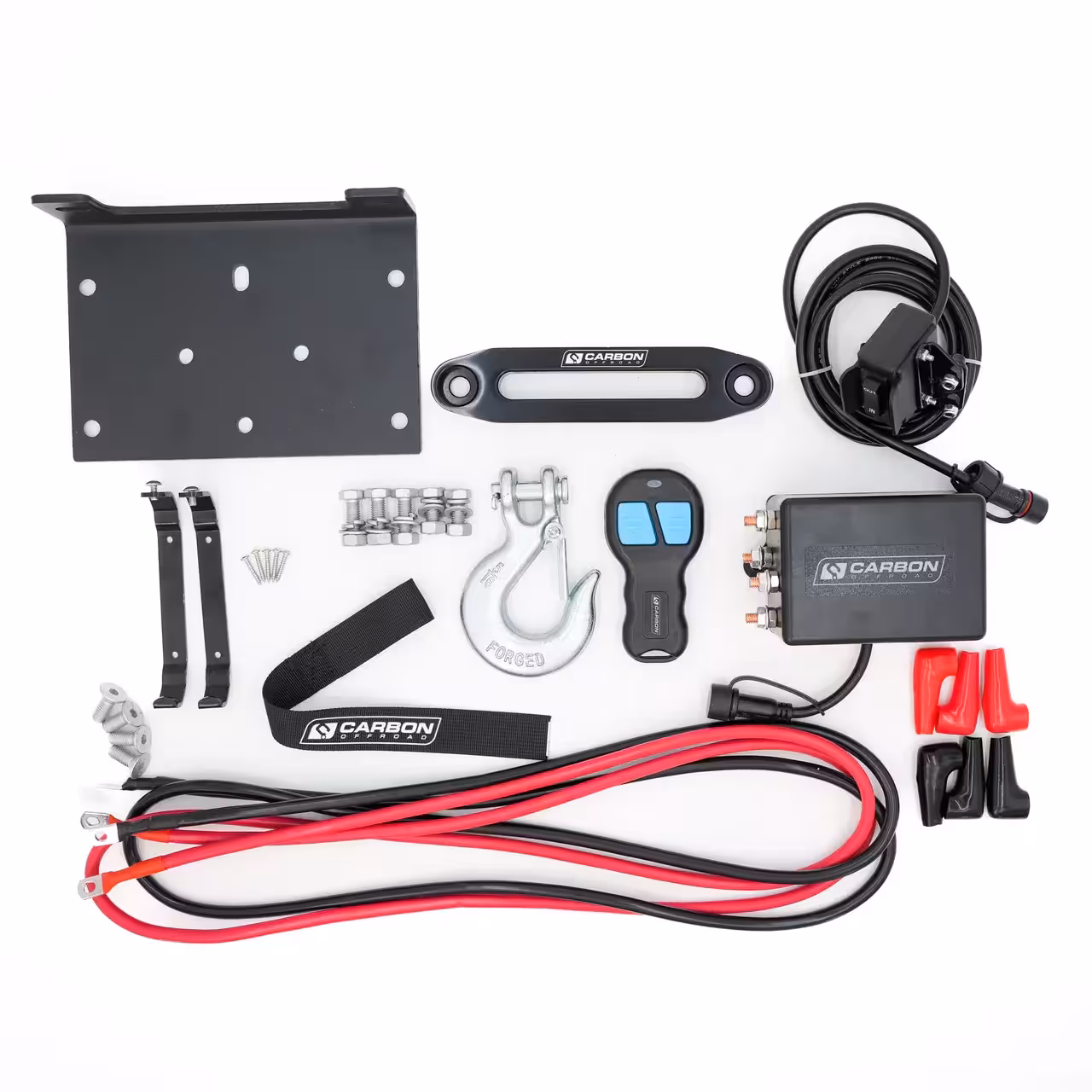

What is Included
- Carbon Offroad RS9 Winch
- 42m Spectra Synthetic Rope
- MegaPro Winch Hook
- Fairlead
- Complete Wiring and Installation Kit
Installation and Fitment
Professional Installation Recommended
This winch is designed for full size mounting setups on 4WD vehicles, performance builds and off road rigs requiring high speed recovery capability.
Due to its power output and performance design, proper mounting and electrical setup are essential for safe operation. Professional installation is recommended.
Ideal Applications
Where This Winch Performs Best
The RS9 High Speed Winch Kit is ideal for serious off road environments where speed and reach are critical. It performs exceptionally well in winch challenges, remote touring and technical recovery situations where standard winches fall short.
FREQUENTLY ASKED QUESTIONS
What makes this winch different from standard 9000lb winches
The RS9 is tuned for speed with an 80 to 1 gear ratio and high output motor, delivering faster recoveries compared to traditional winches.
Why is the 42 metre rope important
It allows you to reach distant anchor points without needing extensions, making recoveries faster and more efficient.
Is this suitable for everyday 4WD use
Yes, but it is specifically designed for performance focused users who prioritise speed and efficiency.
Can this winch handle water and mud
Yes, the IP68 rating ensures protection against water and dust in harsh off road conditions.
Are upgrades available for this winch
Yes, it is compatible with Carbon Offroad Air Freespool Clutch upgrades.
Why Choose Carbon Offroad RS9 High Speed Winch Kit
The RS9 is built for drivers who demand more than standard recovery equipment. It delivers speed, extended reach and proven durability in a system designed for serious off road performance.
