Description

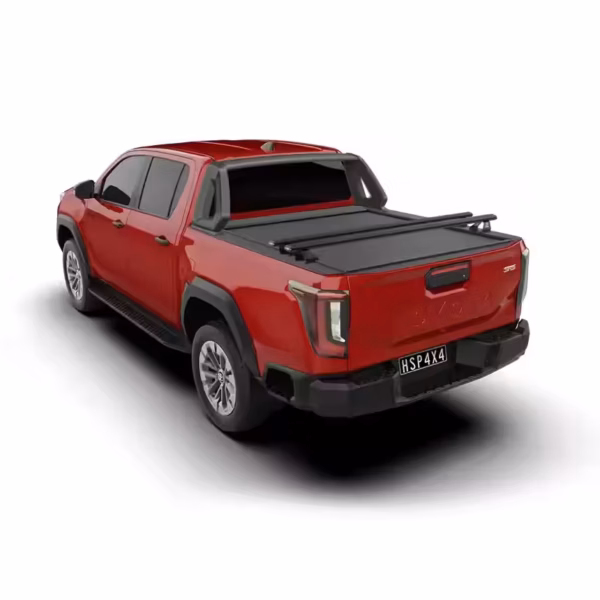

How the HSP Load Bar Fits the Toyota HiLux 2026
The HSP Load Bar Toyota HiLux 2026 slides directly into the T-channel running along the side rails of the HSP Roll R Cover. No drilling, no permanent mounting hardware and no modification to the roller cover or tub. The load bar slides into position and locks at any point along the rail length, giving you flexible positioning to suit different loads and accessories.
The load bar transfers weight to the Roll R Cover side rails rather than directly to the tub floor, which distributes the load over a larger surface area and reduces the impact on the tub structure during driving.
This mounting system also means the load bar removes in the same motion it installs. Slide it in to carry gear, slide it out when you want the clean roller cover profile without the bar above it.
Choosing the Right HSP Load Bar for Your HiLux 2026
The HSP Load Bar Toyota HiLux SR5 2026 comes in three confirmed variants. Confirm which suits your specific HiLux build before ordering.
To Suit No Sports Bar and A-Frame HiLux SR and SR5 2026
This is the standard variant and suits HiLux SR and SR5 2026 owners who do not run a factory sports bar or A-frame accessory above the tub. It carries 80kg dynamic and 200kg static weight rating across the full load bar.
To Suit Armour Bar HiLux SR and SR5 2026
This variant suits HiLux SR and SR5 2026 owners who run the HSP Armour Sports Bar above their Roll R Cover. The Armour Bar variant integrates with the Armour Bar mounting positions. This variant carries a reduced load rating of 40kg dynamic and 100kg static due to the extended span between mounting points.
Twin Pack To Suit No Sports Bar HiLux SR SR5 and GR 2015 Onwards
The twin pack includes two load bars and suits HiLux owners from 2015 onwards who want two cross bar positions across the Roll R Cover. This gives additional flexibility for longer items and multiple accessory mounting points.
Call us on (02) 4058 1911 to confirm which HSP Load Bar variant suits your specific HiLux 2026 build before any order goes in.
HSP Load Bar Toyota Hilux 2026 Specifications
Specification | Detail |
Vehicle | Toyota HiLux SR and SR5 2026+ |
Roll R Cover compatibility | HSP Roll R Cover Series 3 and above |
Dynamic weight rating | 80kg evenly distributed (standard variant) |
Static weight rating | 200kg evenly distributed (standard variant) |
Dynamic weight rating Armour Bar variant | 40kg evenly distributed |
Static weight rating Armour Bar variant | 100kg evenly distributed |
Frame construction | Full metal frame |
Finish | Matte black powder coat |
Channel width | Approximately 11mm universal channel |
Channel compatibility | M6, M8, M10 channel nuts |
Accessory brands | Rhino Rack, Thule, Front Runner, Yakima |
Mounting | Slides into HSP Roller Cover T-channel |
Repositionable | Yes, along the full length of the side rail |
Manufacture | Australian made |
Warranty | 2 years warranty |
80 kg Dynamic Load Rating
The HSP Load Bar Toyota HiLux 2026 carries 80kg of dynamic weight. Dynamic weight is the load capacity while the vehicle is in motion, accounting for wind, drag and braking forces. For stationary loads such as at a campsite or worksite, the static rating is 200kg evenly distributed across the load bar. The Armour Bar variant carries a reduced rating of 40kg dynamic and 100kg static due to the extended mounting span. Both ratings apply to evenly distributed weight across the full load bar surface. Point loads or uneven weight distribution may reduce effective capacity. Call us on (02) 4058 1911 to confirm the correct loading approach for your specific accessories and use before fitting.
Universal Channel Mounts
The HSP Load Bar includes universal channels on both the top and bottom of the cross bar. The channel slot width is approximately 11mm, accepting M6, M8 and M10 channel nuts from major roof rack accessory brands.
This means accessories from Rhino Rack, Thule, Front Runner and Yakima mount directly into the load bar channels without additional adapters. The channels accept bike mounts, ski and snowboard carriers, ladder straps, kayak holders and LED light mounts among other accessories.
Australian-Made Construction
Every HSP Load Bar Toyota HiLux 2026 uses aluminium construction with a matte black powder coat finish. The aluminium body resists corrosion without surface treatment. All non-alloy components including the metal frame legs are treated and powder-coated for additional corrosion protection. The aerodynamic leg profile uses extruded shapes with HD rubber strips to reduce wind resistance and noise during highway driving. This reduces the wind noise and drag typically associated with square-profile cross bars at highway speed.
Sports Bar and Sailplane Compatibility
The HSP Load Bar Toyota HiLux 2026 is compatible with genuine extended HiLux sports bars, sailplanes and the HSP Armour Sports Bar using the specific Armour Bar variant. Standard HiLux SR and SR5 2026 models without a sports bar use the standard load bar variant which mounts directly into the Roll R Cover T-channel at the standard height. HiLux owners who run an extended sports bar or sailplane need the Armour Bar variant because the extended bar raises the mounting height above the standard Roll R Cover rail position. The Armour Bar variant carries a reduced load rating of 40kg dynamic and 100kg static due to the extended span between mounting points. Call us on (02) 4058 1911 to confirm the correct variant for your specific HiLux 2026 build before any order goes in. If you want the HSP Roll R Cover and the Load Bar fitted at the same visit, call us on (02) 4058 1911 to book a combined installation appointment. For the HSP Armour Sports Bar visit our dedicated product page.
HSP Load Bar Toyota Hilux 2026 Installation in Newcastle
We install every HSP Load Bar Toyota HiLux 2026 at our Cardiff workshop on Munibung Road. Our technicians confirm the correct variant for your HiLux 2026 build, slide the load bar into the HSP Roll R Cover T-channel, set the positioning for your specific accessories and confirm all channel mounts operate correctly before your HiLux leaves our workshop.
If you want both the HSP Roll R Cover and the HSP Load Bar Toyota HiLux 2026 fitted at the same visit, call us on (02) 4058 1911 to book a combined installation appointment.
Buy HSP Load Bar Toyota Hilux 2026 in Newcastle
Call us on (02) 4058 1911 to confirm current stock of the HSP Load Bar Toyota HiLux 2026 and get a fixed quote covering supply and fit at our Cardiff workshop.
Newcastle and Hunter Valley Toyota HiLux 2026 owners have trusted our Cardiff workshop for HSP accessories and 4WD fitouts for over ten years. Read our Google reviews from real local customers before booking.
We serve 4WD owners from Newcastle, Cardiff, Maitland, Cessnock, Hunter Valley, Lake Macquarie, Central Coast, Port Stephens and Nelson Bay. Get a free quote online or call us Monday to Friday 8am to 5pm and Saturday 9am to 1pm.
FREQUENTLY ASKED QUESTIONS
Where to buy HSP Load Bar for Toyota HiLux 2026 in Newcastle?
Opposite Lock Cardiff on Munibung Road in Cardiff, Newcastle stocks and fits the HSP Load Bar Toyota HiLux 2026 in all three variants. We are a licensed and authorised HSP dealer and installer in Newcastle. Part number LB80-HLU. Call us on (02) 4058 1911 to confirm current stock and which variant suits your specific HiLux build. We are open Monday to Friday 8am to 5pm and Saturday 9am to 1pm.
Does the HSP Load Bar suit the HiLux 2026 with a sports bar fitted?
Yes. The HSP Load Bar Toyota HiLux 2026 comes in a specific Armour Bar variant that suits HiLux SR and SR5 2026 owners who run the HSP Armour Sports Bar, genuine extended sports bars or sailplanes above the Roll R Cover. This variant carries a reduced load rating of 40kg dynamic and 100kg static. The standard variant suits HiLux SR and SR5 2026 owners without a sports bar and carries 80kg dynamic and 200kg static. Call us on (02) 4058 1911 to confirm the correct variant for your specific HiLux 2026 build.
What is the load rating on the HSP Toyota HiLux 2026 Load Bar?
The standard HSP Load Bar Toyota HiLux 2026 carries 80kg dynamic and 200kg static weight rating. The Armour Bar variant carries 40kg dynamic and 100kg static. Dynamic weight is the load capacity while the vehicle is in motion. Static weight is the load capacity while the vehicle is stationary. Both ratings apply to evenly distributed weight across the full load bar. Call us on (02) 4058 1911 to confirm the correct load rating for your specific accessories and use.
Does the HSP Load Bar work with Rhino Rack and Yakima accessories?
Yes. The HSP Load Bar includes universal channels on both the top and bottom of the cross bar accepting M6, M8 and M10 channel nuts. This makes it compatible with accessories from Rhino Rack, Thule, Front Runner and Yakima without additional adapters. The channel slot width is approximately 11mm. Call us on (02) 4058 1911 to confirm compatibility with your specific accessories before ordering.
Can the HSP Load Bar be repositioned along the Roller Cover?
Yes. The HSP Load Bar slides along the T-channel running the full length of the HSP Roll R Cover side rails. You can reposition it at any point along the rail to suit different accessory setups, load lengths or A-frame sports bar positions. No tools required to reposition. Simply release the load bar from its current position and slide it to the new location along the rail. Call us on (02) 4058 1911 to confirm the correct positioning for your specific accessories and HiLux 2026 setup.
Does the HSP Load Bar Twin Pack suit older HiLux models?
Yes. The Twin Pack variant suits Toyota HiLux SR, SR5 and GR models from 2015 onwards without a sports bar. It includes two load bars giving you two cross bar positions across the Roll R Cover for longer items and multiple accessory mounting points. The standard single load bar variants suit the HiLux SR and SR5 2026 specifically. Call us on (02) 4058 1911 to confirm which variant suits your specific HiLux model year and build.
What channel nut size does the HSP Load Bar accept?
The HSP Load Bar universal channel slot is approximately 11mm wide and accepts M6, M8 and M10 channel nuts. This is a universal size compatible with major roof rack accessory brands including Rhino Rack, Thule, Front Runner and Yakima. Before purchasing accessories confirm your channel nut size matches the 11mm slot width. Call us on (02) 4058 1911 to confirm channel nut compatibility with your specific accessories before ordering.
What is the warranty on the HSP Load Bar Toyota HiLux 2026?
The HSP Load Bar carries a two-year warranty when registered through the HSP website after installation. HSP manufactures every Load Bar in Australia so parts are available locally. Buying from an authorised HSP dealer like Opposite Lock Cardiff means your warranty is supported locally at our Cardiff workshop. Call us on (02) 4058 1911 to confirm warranty registration details before your installation.
