Description

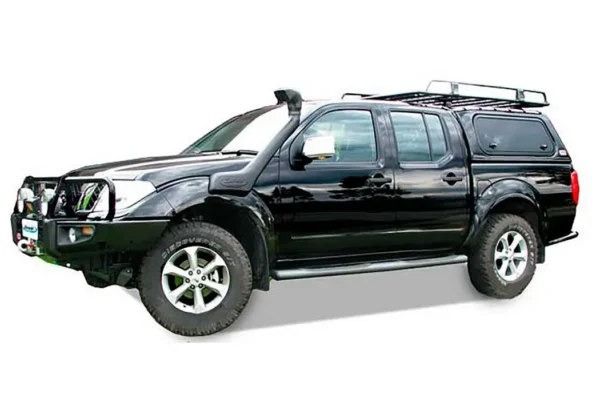

Maximum Engine Protection for the Nissan Navara D40
Help Protect Your Engine from Dust, Water and Harsh Australian Conditions
Australia’s harsh driving environments expose your engine to fine dust, heavy rain, deep water crossings and airborne debris that can reduce engine performance and accelerate component wear.
The Safari SS731HF raises the factory air intake to roof height, allowing your Navara to breathe cleaner, cooler air while reducing the amount of contaminants entering the factory intake system.
Benefits include:
- Reduced dust entering the air intake
- Improved air filter service life
- Cleaner airflow to the engine
- Added confidence during water crossings
- Reliable performance across demanding off road environments
Ideal for:
- Touring Australia
- Caravan towing
- Off road adventures
- Beach driving
- Mining and construction sites
- Rural properties
- Farm vehicles
- Daily driving
Safari Air Ram Technology
Advanced Airflow with Proven Water Separation
The Safari Air Ram has been engineered to maximise airflow while helping separate rainwater and airborne moisture before it reaches the factory airbox.
Its proven high flow design supplies your Navara’s 2.5L diesel engine with a consistent stream of cooler, cleaner air without restricting intake performance.
This advanced engineering helps deliver dependable protection during severe weather, dusty tracks and challenging off road conditions.
Vehicle Specific Engineering
Designed Specifically for the D40 ST and ST-X VIN VSK Models
Unlike universal snorkels, the Safari SS731HF has been developed specifically for the Nissan Navara D40 ST and ST-X 2010 onwards VIN VSK models fitted with the 2.5L diesel engine.
Benefits include:
- Precision vehicle specific fitment
- Factory style appearance
- Excellent sealing performance
- Optimised airflow characteristics
- Professional installation compatibility
Important: This snorkel is not compatible with RX 4×2 or RX 4×4 models fitted with the narrow front guard.
Built to Handle Australian Conditions
Australian Designed and Manufactured
Safari Snorkels are designed, moulded and manufactured in Australia for some of the harshest operating conditions in the world.
Constructed from UV stable cross linked polyethylene, the SS731HF is built to withstand:
- Extreme UV exposure
- High engine bay temperatures
- Heavy rainfall
- Water crossings
- Mud and dust
- Corrugated roads
- Remote touring
- Off road impacts
Whether your Navara is a touring vehicle, work ute or weekend adventure rig, the Safari SS731HF is built for years of dependable performance.
Key Features
- Safari Part Number SS731HF
- Suits Nissan Navara D40 ST & ST-X 2010 Onwards VIN VSK
- Compatible with 2.5L diesel engine
- Does not suit RX 4×2 or RX 4×4 narrow front guard models
- Raised air intake for improved engine protection
- Increased airflow to the factory intake system
- Safari high flow Air Ram
- Advanced water separation design
- UV stable cross linked polyethylene construction
- Australian designed and manufactured
- Stainless steel mounting hardware
- Vehicle specific installation template included
- Built for demanding Australian conditions
What's Included
Safari Snorkel Nissan Navara 4×4 Kit – Parts List
Nissan Navara 4WD Snorkel for D40 ST/ST-X 2010 Onwards VIN: VSK 2.5L Diesell Models – Safari Automotive Nissan Navara 4×4 Snorkel Part Number SS731HF
*Does not suit RX 4×2 and 4×4 models with narrow front guard.
| ITEM | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | 430-133-000 | BODY – SNORKEL (SS730HF) | 1 |
| 2 | 000-135-800 | 3 ½” AIR RAM ASSEMBLY | 1 |
| 3 | 430-032-000 | BRACKET – UPPER MOUNTING | 1 |
| 4 | 000-002-100 | BOLT – HEX – 6mm x 1.0 x 14mm (SEMS) | 3 |
| 5 | 000-951-300 | SCREW – S/T – 4.2mm x 16mm – S/S | 3 |
| 6 | 000-960 | INSERT – PLASTIC | 3 |
| 7 | 000-110 | STUD – 8mm x 1.25 x 25mm – S/S | 4 |
| 8 | 000-311-300 | WASHER – BODY – 8mm x 30mm – S/S | 4 |
| 9 | 000-205-300 | NUT – NYLOC – 8mm x 1.25mm – S/S | 4 |
| 10 | 430-024-300 | HOSE – AIR ENTRY | 1 |
| 11 | 430-025-300 | PLATE – HOSE SUPPORT | 1 |
| 12 | 430-017-300 | TEMPLATE – AIR INLET DUCT | 1 |
| 13 | 000-958-200 | POP RIVET – 4mm x 16mm | 10 |
| 14 | 000-300-350 | WASHER – BODY 4mm x 12mm | 4 |
| 15 | 000-972-119 | GROMMET – RUBBER 19mm | 1 |
| 16 | 000-909 | CLAMP – HOSE – 80/100mm | 1 |
| 17 | 000-914/B | CLAMP – HOSE SIZE 56 (BLACK) | 1 |
| 18 | 430-016-000 | GASKET – FOAM BODY (SELF ADHESIVE) | 1 |
| 19 | 430-017-000 | TEMPLATE – GUARD PANEL | 1 |
Professional Installation Available
Expert Safari Snorkel Installation at Opposite Lock Cardiff
Professional installation ensures your snorkel is correctly aligned, fully sealed and integrated with the factory air intake system for maximum reliability and long term performance.
Opposite Lock Cardiff supplies and installs Safari Snorkels for customers throughout:
- Newcastle
- Cardiff
- Lake Macquarie
- Maitland
- Hunter Valley
- Port Stephens
- Central Coast
Our experienced technicians install Safari products to manufacturer specifications, delivering dependable performance both on and off the road.
Ideal Applications
Built for Work, Touring and Off Road Adventures
The Safari SS731HF is ideal for Nissan Navara owners who demand dependable engine protection across Australia’s toughest driving conditions.
Perfect for:
- Touring Australia
- Caravan towing
- Camping
- Beach driving
- Off road recreation
- Rural properties
- Trade vehicles
- Construction fleets
- Mining applications
- Everyday driving
FREQUENTLY ASKED QUESTIONS
Which Nissan Navara models does the SS731HF fit?
The SS731HF fits Nissan Navara D40 ST and ST-X models built from 2010 onwards with VIN VSK and the 2.5L diesel engine.
Does this snorkel fit RX models?
No. The SS731HF does not fit RX 4×2 or RX 4×4 models fitted with the narrow front guard.
Why install a Safari Snorkel?
A Safari Snorkel helps your engine breathe cleaner, cooler air while reducing exposure to dust, rain and water, helping improve long term engine protection in harsh Australian environments.
Can I use the SS731HF for water crossings?
Yes. The raised air intake provides improved protection during water crossings. Safe crossing depth will also depend on the vehicle’s preparation, driving technique and current conditions.
Is the Safari SS731HF Australian made?
Yes. Safari Snorkels are proudly designed, moulded and manufactured in Australia using premium materials engineered for Australian conditions.
Can Opposite Lock Cardiff supply and install this snorkel?
Yes. Opposite Lock Cardiff provides complete supply, professional installation and expert advice for the Safari SS731HF and the complete Safari Snorkel range.
Why Choose the Safari Snorkel SS731HF
The Safari SS731HF combines Australian engineering, premium materials and precision vehicle specific design to deliver outstanding engine protection for the Nissan Navara D40 ST and ST-X 2010 onwards VIN VSK 2.5L Diesel.
Whether you’re preparing your Navara for heavy towing, remote touring, demanding work environments or serious off road adventures, the SS731HF delivers the airflow, durability and reliability trusted by Australian four wheel drive owners.
For expert advice, professional installation and trusted after sales support, choose Opposite Lock Cardiff, Newcastle’s destination for premium Safari Snorkels, quality 4WD accessories and professional installations.
