Description

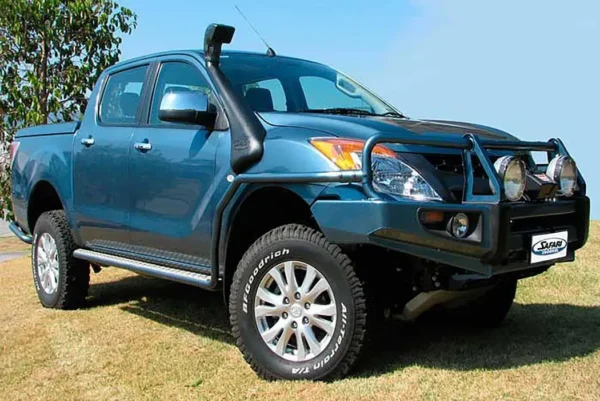

Safari Snorkel to Suit Mazda BT-50 3.2L Diesel 08/2011–2020
The Safari SS985HF Snorkel is a vehicle-specific intake upgrade designed for the Mazda BT-50 08/2011 to 2020 fitted with the 3.2L Diesel engine. Built for drivers who use their ute in demanding conditions, this snorkel helps raise the engine’s air intake to a safer position where cleaner and cooler air is available.
Whether the vehicle is used for off-road touring, towing, worksite access or long-distance rural travel, the Safari snorkel is designed to support the airflow requirements of the 3.2L diesel engine while helping reduce the risk of ingesting dust, rainwater and debris.
Engine Airflow and Intake Protection for Mazda BT-50 3.2L Diesel
The factory air intake position on many 4WD vehicles can leave the engine exposed to airborne contaminants during harsh driving conditions. The Safari SS985HF snorkel helps address this by relocating the intake point to a higher position, allowing the engine to draw in cleaner air during dusty tracks, wet weather and uneven terrain.
For Mazda BT-50 owners who regularly travel through regional roads, gravel tracks or off-road environments, maintaining cleaner airflow can help support more consistent intake performance and reduce unnecessary strain on the air filtration system.
Designed for Real 4WD and Touring Conditions
This snorkel is well suited to drivers who use their BT-50 for:
- Off-road touring
- Rural and farm driving
- Towing and long-distance travel
- Worksite access
- Wet and dusty environmental conditions
Its raised intake design supports better air access in challenging environments where a lower factory intake may be more exposed.
Water Separating Air Ram Design
One of the standout features of the Safari snorkel system is its air ram design, which performs more than just air intake collection. In addition to directing a high volume of cooler air into the snorkel body, the air ram is engineered to assist with water separation before moisture reaches the intake system.
This makes the snorkel especially beneficial in:
- Heavy rain
- Muddy tracks
- Wet seasonal driving
- Splash-prone off-road routes
While no snorkel alone makes a vehicle fully waterproof, a properly installed Safari snorkel can provide an important layer of intake protection in water-exposed driving environments.
Heavy Duty Safari Construction for Long-Term Durability
The Safari SS985HF Mazda BT-50 snorkel is manufactured using UV stable cross linked polyethylene, a material chosen for its durability, strength and long-term resistance to harsh outdoor conditions.
This construction helps the snorkel maintain its structural integrity under:
- Constant sun exposure
- Off-road vibration
- Heat cycling
- General impact and environmental wear
For owners looking for a long-term intake upgrade rather than a cosmetic accessory, Safari snorkels are widely recognised for their practical design and dependable material quality.
Manufactured for Harsh Australian Conditions
Safari Automotive designs and manufactures snorkels in Australia for use in some of the toughest driving environments in the world. That matters for 4WD owners who want a snorkel that is built with real-world durability in mind rather than universal-fit compromise.
Safari SS985HF Snorkel Features
- Australian designed, moulded and manufactured by Safari Automotive
- Designed to suit Mazda BT-50 08/2011–2020 3.2L Diesel
- Raised air intake for improved intake positioning
- Increased airflow support for the factory air cleaner assembly
- Water separating air ram design
- UV stable cross linked polyethylene construction
- Durable snorkel body built for harsh off-road conditions
- Includes fitting guide and installation template
Vehicle Compatibility
The Safari SS178HF snorkel is designed to suit the following vehicle application:
Compatible Vehicle
Mazda BT-50
Year Range
08/2011 – 2020
Compatible Engine
3.2L Diesel
Safari Part Number
SS985HF
Checking vehicle compatibility before purchase is recommended to ensure correct fitment for your specific build and configuration.
Safari SS985HF Snorkel Kit Contents
The Safari SS985HF snorkel kit includes the components required for installation onto the compatible Mazda BT-50 model, including the snorkel body, air ram, mounting hardware, hose connections and installation template.
Parts Included
Mazda BT-50 4WD Snorkel for 08/2011 – 2020 3.2L Diesel Models – Safari Automotive Mazda BT-50 4×4 Snorkel Part Number SS985HF
Actual model not shown.
| ITEM | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | 685-133-000 | BODY – SNORKEL (SS985HF) | 1 |
| 2 | 000-135-800 | 3 ½” AIR RAM ASSEMBLY | 1 |
| 3 | 685-032-000 | BRACKET – UPPER MOUNTING | 1 |
| 4 | 000-002-100 | BOLT – HEX – 6mm x 1.0 x 14mm (SEMS) | 2 |
| 5 | 000-951 | SCREW – S/T – 4.2mm x 13mm – S/S | 3 |
| 6 | 000-960 | INSERT – PLASTIC | 3 |
| 7 | 000-110 | STUD – 8mm x 1.25 x 25mm – S/S | 4 |
| 8 | 000-311-300 | WASHER – BODY – 8mm x 30mm – S/S | 4 |
| 9 | 000-205-300 | NUT – NYLOC – 8mm x 1.25mm – S/S | 4 |
| 10 | 685-024-000 | HOSE – AIR ENTRY | 1 |
| 11 | 000-908 | CLAMP – HOSE – 70/90mm | 1 |
| 12 | 000-1911 | CLAMP – HOSE 100/120mm | 1 |
| 13 | 000-914/B | CLAMP – HOSE – SIZE 56 (BLACK) | 1 |
| 14 | 685-017-000 | TEMPLATE – GUARD PANEL | 1 |
Installation Information
The Safari SS985HF snorkel kit is supplied with a comprehensive fitting guide and vehicle-specific guard panel template to assist with installation.
Professional installation is recommended if you want to ensure:
- Correct alignment
- Proper sealing
- Secure mounting
- Reliable intake system performance
A correctly installed snorkel is essential for maintaining both fitment quality and engine intake protection.
Why Mazda BT-50 Owners Choose Safari Snorkels?
Mazda BT-50 owners often choose Safari snorkels because they are designed specifically for the vehicle rather than relying on generic intake solutions. This results in better fitment, cleaner installation outcomes and stronger confidence in long-term off-road durability.
For drivers who want a practical intake upgrade for touring, work or 4WD use, the Safari SS985HF is a trusted option designed to match the airflow needs and environmental demands of the BT-50 platform.
FREQUENTLY ASKED QUESTIONS
Is this snorkel compatible with Mazda BT-50 08/2011–2020 3.2L Diesel models?
Yes. The Safari SS985HF snorkel is designed specifically for Mazda BT-50 models built between 08/2011 and 2020 fitted with the 3.2L diesel engine.
Does this snorkel help protect the engine in dusty off-road conditions?
Yes. By raising the engine air intake position, the snorkel helps reduce the amount of dust, debris and contaminated air entering the intake system during off-road and rural driving.
Does the Safari air ram help with water separation?
Yes. The Safari air ram is designed to help separate rainwater and moisture from the incoming airflow before it reaches the intake system.
Does the kit include installation hardware?
Yes. The Safari SS985HF snorkel kit includes the main snorkel components, mounting hardware, hose connections and a fitting template for installation.
Is this a genuine Safari Automotive snorkel?
Yes. The SS985HF is a genuine Safari Automotive snorkel designed and manufactured for vehicle-specific fitment and reliable 4WD performance.
