Description

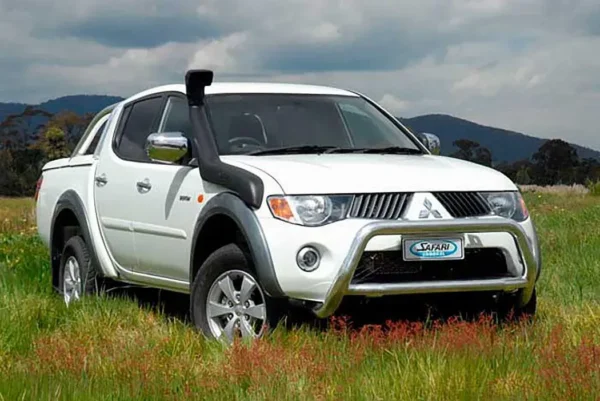

Mitsubishi Triton ML 3.2L Diesel Snorkel Upgrade for Off-Road Airflow Performance and Engine Protection
The Mitsubishi Triton ML platform is widely used in off-road, trade and touring environments where airflow quality directly impacts engine efficiency and longevity.
The Safari SS661HF snorkel is engineered to improve intake positioning by raising the air entry point above dust-heavy zones. This allows the engine to draw cleaner air, especially during:
- Off-road driving on dirt and sand
- Regional and remote travel
- Construction and worksite use
- Wet and muddy terrain
Unlike factory intake systems, which are positioned low in the engine bay, this snorkel provides a consistent and protected airflow source.
Vehicle Compatibility and Fitment
Compatible Vehicle
Mitsubishi Triton ML
Compatible Engine
3.2L Diesel
Application Type
4×4 Off-Road Driving, Touring, Heavy Duty Use
Safari Part Number
SS661HF
Why Triton ML Engines Require a Raised Air Intake System
The Triton ML 3.2L diesel engine operates in environments where airborne contaminants and water exposure can reduce engine efficiency over time.
The Safari snorkel system addresses these issues by:
- Raising the intake height above dust concentration zones
- Reducing fine particle ingestion into the air filter
- Supporting consistent airflow under load
- Improving engine protection during water crossings
This makes it a critical upgrade for vehicles used in demanding environments.
Advanced Airflow Engineering with Safari Air Ram Technology
The Safari snorkel is designed as a complete airflow management system. The air ram performs two essential roles.
It directs a high volume of cool and clean air into the snorkel body while acting as a water separator to remove moisture from the intake stream.
This ensures:
- Stable airflow in varying driving conditions
- Reduced water entry during rain or crossings
- Improved engine efficiency and reliability
Heavy Duty Construction for Extreme Conditions
The SS661HF snorkel is manufactured from industrial-grade UV stabilised cross-linked polyethylene, offering resistance against:
- UV exposure
- Heat and temperature variation
- Impact and vibration during off-road use
The system also includes stainless steel hardware and reinforced mounting components to ensure long-term structural integrity.
Installation and System Integration
This snorkel is designed for direct fitment on Mitsubishi Triton ML models and includes all required components for installation.
A key feature of this system is the inclusion of a radiator overflow bottle relocation setup, ensuring proper integration within the engine bay without compromising factory layout.
Correct installation ensures a sealed intake system aligned with the vehicle’s air cleaner assembly.
Safari SS661HF Snorkel Kit Parts List
Mitsubishi Triton 4WD Snorkel for ML 3.2L Diesel Models – Safari Automotive Mitsubishi Triton 4×4 Snorkel Part Number SS661HF
Actual model not shown.
| ITEM | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | 525-133-000 | BODY – SNORKEL (SS660HF) | 1 |
| 2 | 000-135-800 | 3 ½” AIR RAM ASSEMBLY | 1 |
| 3 | 525-032-000 | BRACKET – UPPER MOUNTING | 1 |
| 4 | 000-002-100 | BOLT – HEX – 6mm x 1.0 x 14mm (SEMS) | 3 |
| 5 | 000-951 | SCREW – S/T – 4.2mm x 13mm | 3 |
| 6 | 000-960 | INSERT – PLASTIC | 3 |
| 7 | 000-110 | STUD – S/S – 8mm x 1.25 x 25mm O/L | 8 |
| 8 | 000-352 | WASHER – BODY – 8mm x 45mm – S/S | 4 |
| 9 | 000-311-300 | WASHER – BODY – 8.5mm x 32mm – S/S | 4 |
| 10 | 000-205-300 | NUT – NYLOC – 8mm x 1.25 – S/S | 8 |
| 11 | 525-024-200 | HOSE – AIR ENTRY | 1 |
| 12 | 525-023-200 | ADAPTOR – AIR CLEANER | 1 |
| 13 | 000-958-300 | POP RIVET – 4.8mm x 12mm | 3 |
| 14 | 000-909 | CLAMP – HOSE – 80/100mm | 2 |
| 15 | 525-098-200 | BOTTLE – RADIATOR OVERFLOW – PLASTIC | 1 |
| 16 | 525-098-300 | CAP – OVERFLOW BOTTLE – 38mm ID – WHITE | 1 |
| 17 | 525-096-000 | BRACKET – OVERFLOW BOTTLE MOUNTING | 2 |
| 18 | 000-1018-300 | BOLT – B/H – 5mm x 0.8 x 8mm – S/S | 2 |
| 19 | 000-951-500 | SCREW – S/T – 4.8mm x 16mm | 2 |
| 20 | 000-917-100 | CLAMP – SPRING – 5/16″ | 1 |
| 21 | 000-530 | ADAPTOR – HOSE – 8mm/8mm | 1 |
| 22 | 000-838-035 | HOSE – RADIATOR OVERFLOW EXTENSION | 1 |
| 23 | 000-987-100 | CABLE TIE – 2.5mm x 100mm | 3 |
| 24 | 000-914/B | CLAMP – HOSE – SIZE 56 (BLACK) | 1 |
| 25 | 525-017-000 | TEMPLATE – SNORKEL BODY | 1 |
FREQUENTLY ASKED QUESTIONS
Will this snorkel fit Mitsubishi Triton ML 3.2L diesel models?
Yes, this snorkel is specifically engineered for Mitsubishi Triton ML vehicles equipped with the 3.2L diesel engine.
Does this snorkel improve engine protection in off-road conditions?
Yes, the raised air intake reduces dust and water exposure, helping protect the engine in harsh environments.
Is this snorkel suitable for water crossings?
Yes, the air ram system helps reduce water entering the intake system during wet driving conditions.
Does the snorkel include installation hardware?
Yes, the kit includes all mounting hardware, templates and components required for installation.
Is this a genuine Safari Automotive snorkel?
Yes, the SS661HF is a genuine product manufactured by Safari Automotive in Australia.
